Description
Brand - ZEN
Item Number - LR5202-NPPU ZEN
Category - LR Series (Track Rollers)

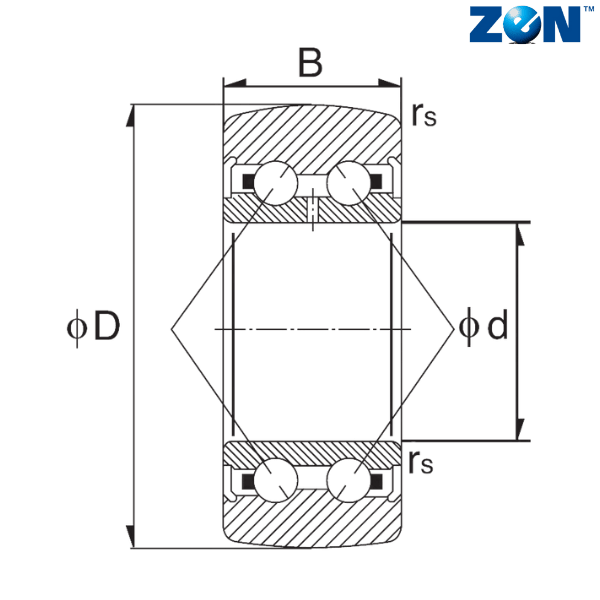

Inner Ring Dimension (d) mm - 15
Outer Ring Dimension (D) mm - 40
Width (B) mm - 15.9
Radius (rs) mm - 0.6
Dynamic Load Rating (N) - 9800
Static Load Rating (N) - 6200
Limiting Speed (NPP and NPPU) - 7
Limiting Speed (KDD and KDDU) - 10
Weight (kg) - 0.11
Radial Play - 0.003-0.018
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

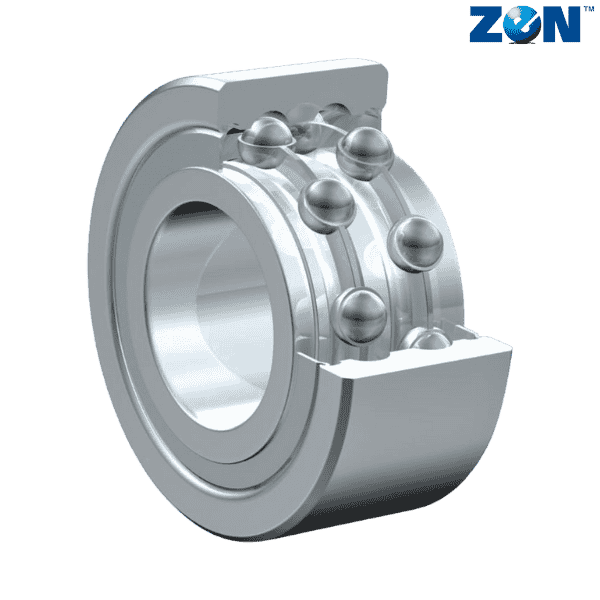

** Images are for representation purposes only
