Description
Brand - RBC HEIM
Item Number - HM3C RBC HEIM
Category - Rod Ends (Commercial Series)

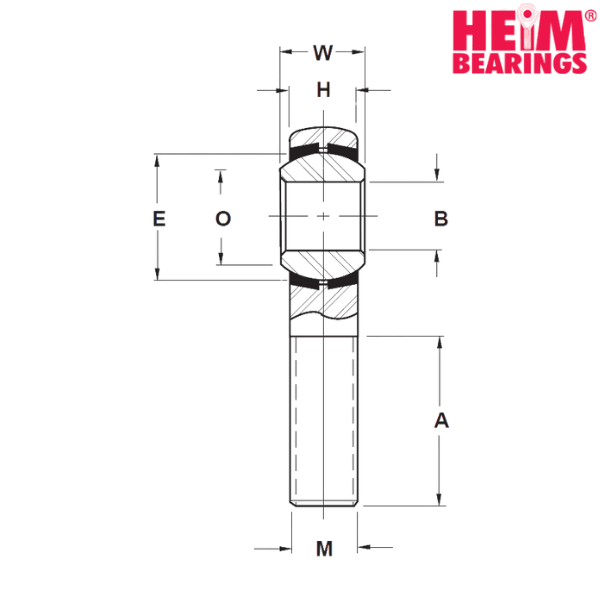

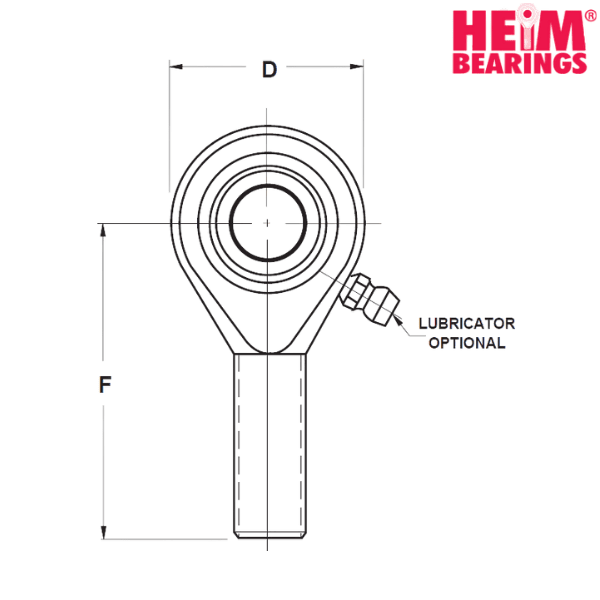

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.19 (+.0025 to - .0005) inch
Ball Width (W) - 0.312 inch
Housing Width (H) - 0.25 (+.010 to - .010) inch
Head Diameter (D) - 0.625 (+.010 to - .010) inch
Length to Center of Ball (F) - 1.25 (+.031 to - .031) inch
Thread Length (A) - 0.75 (+.062 to - .031) inch
Thread Size (M) - 0.1900 - 32 (UNF-3A) inch
Ball Diameter (E) - 0.437 inch
Ball Flat Diameter (O) - 0.306 inch
Maximum Static Radial Load (Without Lubricator) - 900 lbf
Approximate Weight - 0.03 lbs
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.014 kg
Other salient points to be noted :
• Outer Member = Carbon steel, with protective coating for corrosion resistance.
• Ball = 52100 Alloy steel, heat treated, chrome plated.
• Inserts = Brass.
• Add letter “L” to prefix to indicate Left Hand thread. Example: HML4C

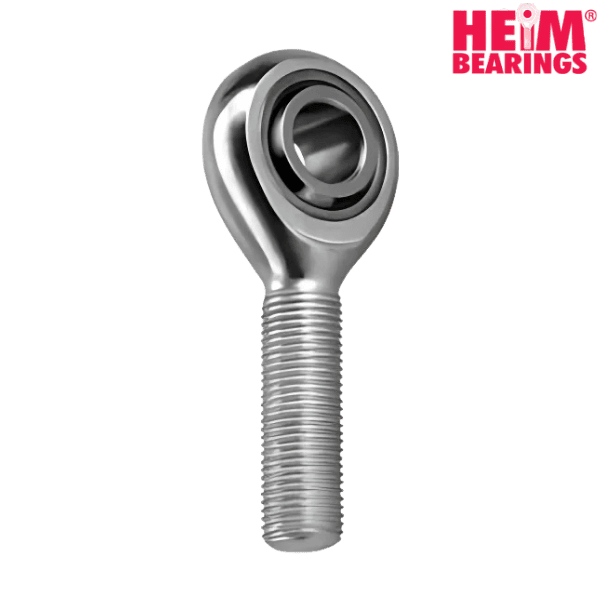

♦ ♦ Images are for representation purposes only
