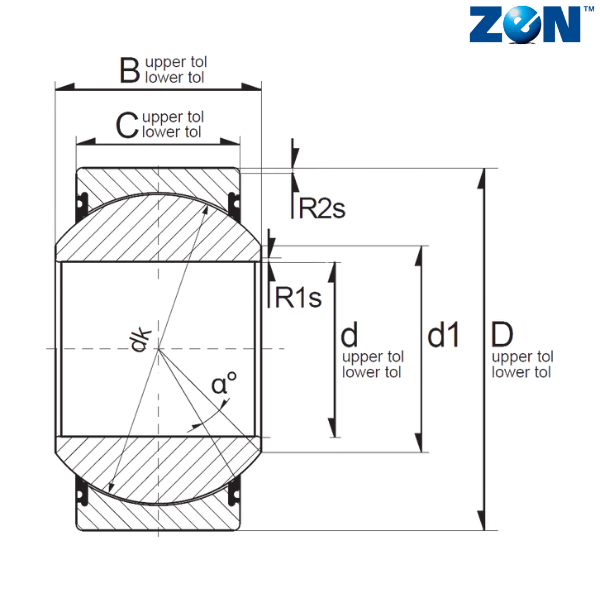

Description
Brand - ZEN
Item Number - GE20-FW-2RS ZEN
Category - Radial Spherical Plain Bearings
Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 42
Width (B) mm - 25
C (mm) - 16
dk (mm) - 35.5
R1s (mm) - 0.6
R2s (mm) - 0.6
α - 17
Weight (kg) - 0.15
Dynamic Load Rating (N) - 45990
Static Load Rating (N) - 115200
Notes :
2RS - Rubber Seals
Maintenance-Free
** Images are for representation purposes only
