Description
Brand - INA
Item Number - G3306-2Z-AN02 INA

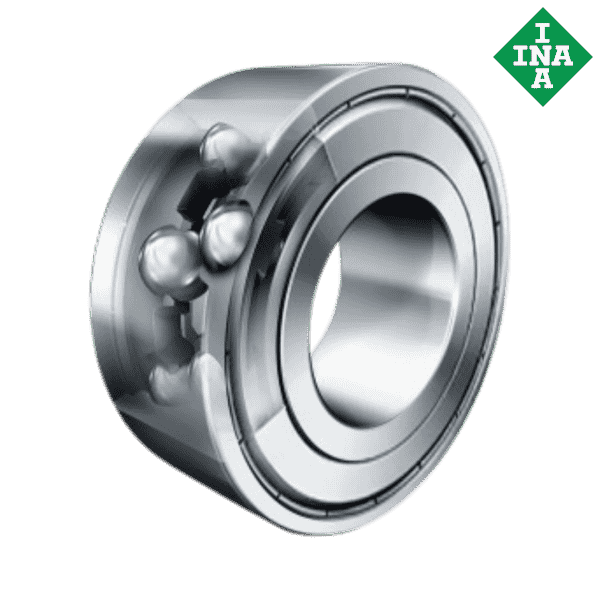

Category - Angular Contact Ball Bearing Double Row
Also known as - 4464080000

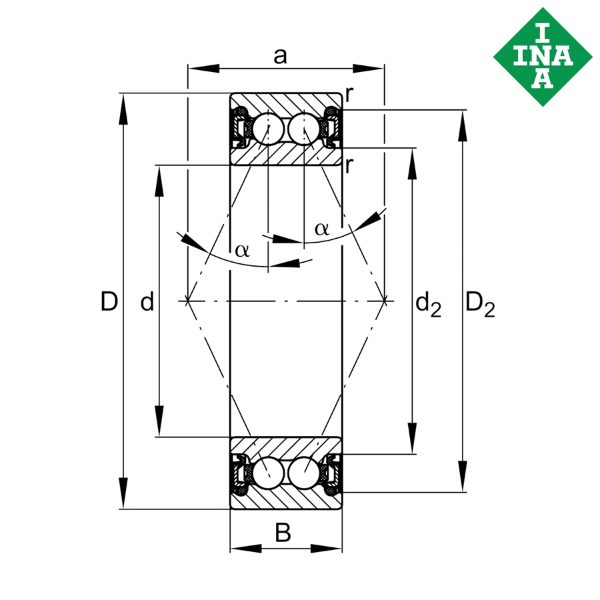

Inner (d) MM - 30
Outer (D) MM - 72
Width (B) MM - 30.2
Weight (kg) - 0.574
Bore - C - Cylindrical Bore
Seal - ZZ/2Z - Steel Seal on Two Sides
Cage Type - S - Steel or Standard Cage
External Modification - No External Modification
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Split Inner ring / Outer ring - Standard
** Images are for representation purposes only
