Description
Brand - DODGE
Item Number - DODGE - P2B-DLH-112-E
Category - D-LOK® Ball Bearings (DLH-E Expansion and DLH Non-Expansion Normal Duty Pillow Blocks)
Series - 209
Shaft Size (inch) - 1.75
Description - P2B-DLH-112-E
Description (Non-Expansion) - P2B-DLM-112
Weight (lbs) - 9.2

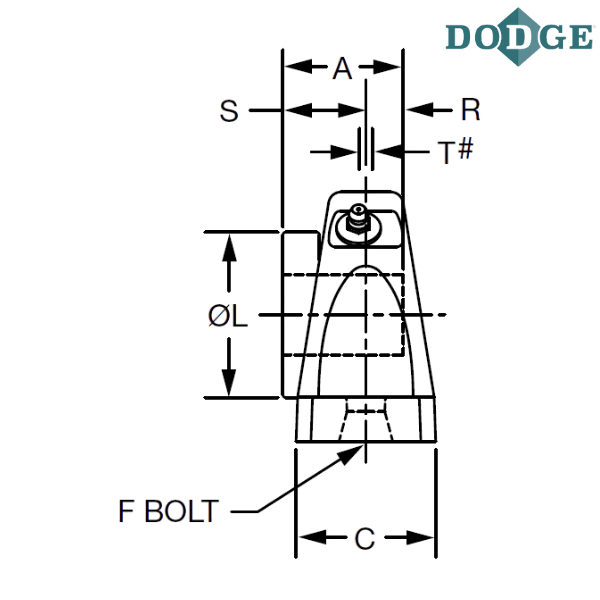

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 8.12
Width (C) inch - 2.25
Bolt to Bolt Minimum Distance (D min) inch - 6
Bolt to Bolt Maximum Distance (D max) inch - 6.68
F-Bolt Diameter (inch) - 0.625
G (inch) - 1.02
H (inch) - 0.75
Overall Height (J) inch - 4.53
L (inch) - 2.99
Base to Center Height (M) inch - 2.25
R (inch) - 0.75
S (inch) - 1.26
Total Expansion (T) inch - 0.25
U (inch) - 3.69
V (inch) - 7.38
W (inch) - 0.81
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
H - High backing height
E - Expansion

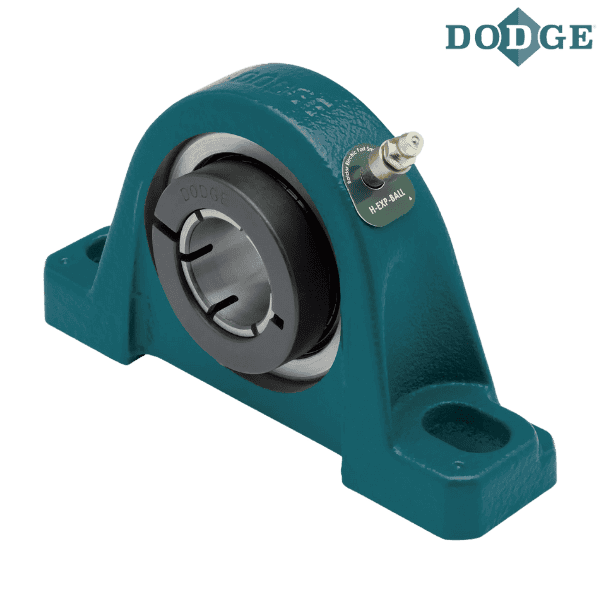

** Images are for representation purposes only
