Description
Brand - IKO
Category - Standard Type Cam Folowers (With Cage/Stud Head Hex Hole)
Item Number - CF 18 BUUR IKO
Also Known As - CF18BUUR

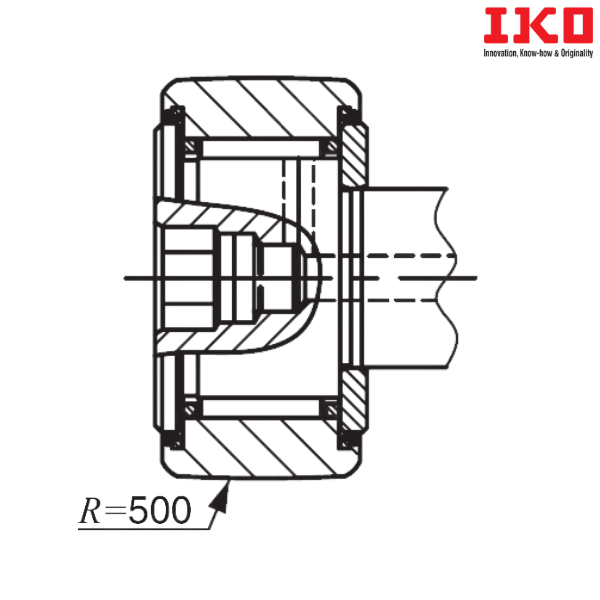

Type - Sealed Type (with Crowned Outer Ring)

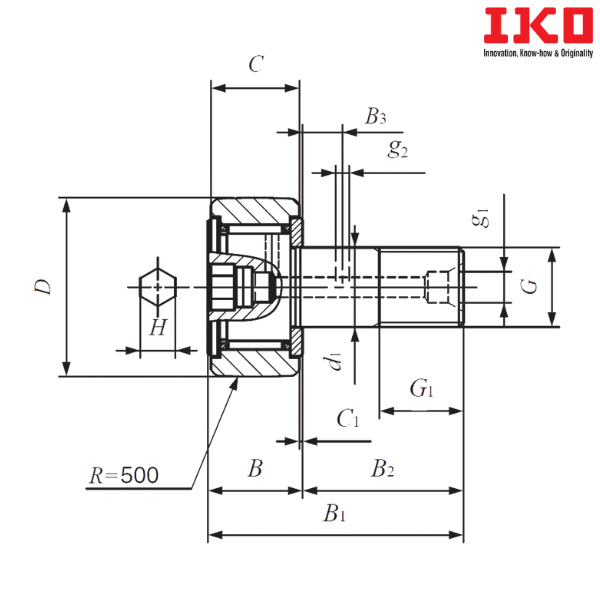

Stud Diameter (d) mm - 18
Weight (kg) - 0.25
Outside Diameter of Outer Diameter (D) mm - 40
Width of Outer Ring (C) mm - 20
Boundary Dimension (d1) mm - 18
G - M18×1.5
Boundary Dimension (G1) mm - 19
Maximum Boundary Dimension (B) mm - 21.6
Maximum Boundary Dimension (B1) mm - 58.1
Boundary Dimension (B2) mm - 36.5
Boundary Dimension (B3) mm - 8
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 6
Boundary Dimension (g2) mm - 3
Boundary Dimension (H) mm - 8
Minimum Allowable Value of Chamfer Dimension (rs min) - 1

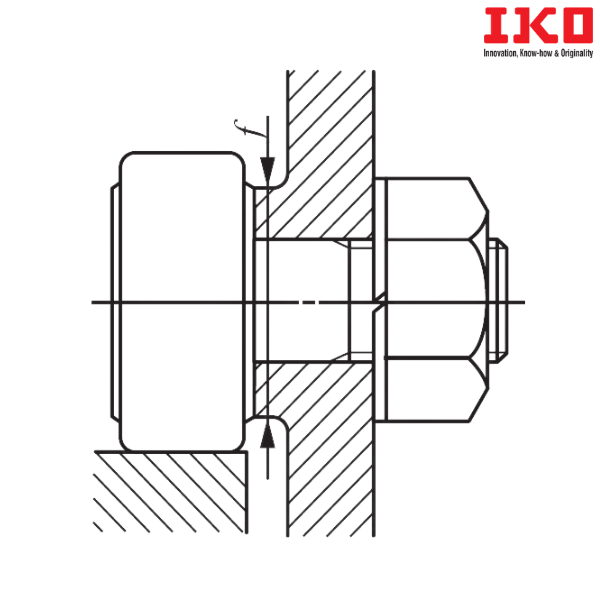

Minimum Mounting Dimension (f min) mm - 29
Maximum Tightening Torque (N-m) - 86.2
Basic Dynamic Load Rating (C) N - 14800
Basic Static Load Rating (C0) N - 25200
Maximum Allowable Static Load (N) - 25200
Shield Type (with Crowned Outer Ring) - CF 18 BR
Shield Type (with Cylindrical Outer Ring) - CF 18 B
Sealed Type (with Cylindrical Outer Ring) - CF 18 BUU
Notes :
Descriptions of Prefixes and Suffixes :
------------------------------------------------------
CF....B - Standard Type Cam Follower(Stud Head Hex Hole)
R - With Crowned Outer Ring
UU - Sealed Type
** Images are for representation purposes only
