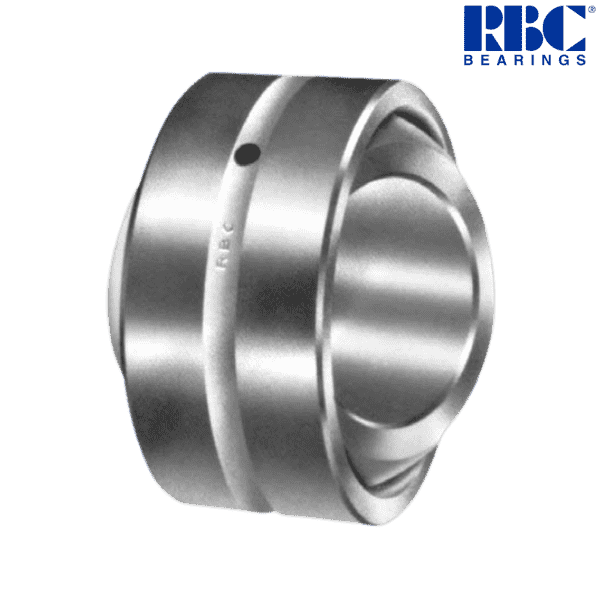

BT3236-L RBC

Brand - RBC
Item Number - BT3236-L RBC
Category - Spherical Plain Bearing with Tapered Bore
Basic Part Number - (-3236)

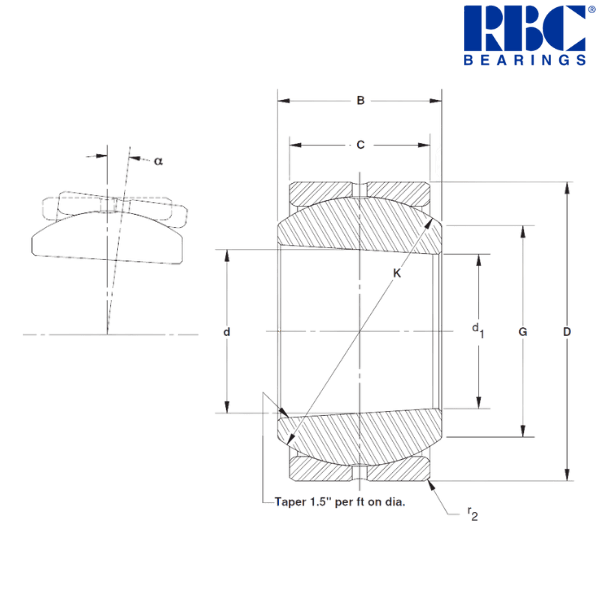

Principal Dimensions & Load Ratings (Imperial) :
Nominal Diameter of Inner Ring* (d) - 2 inch
Bore Diameter (d1) - 1.888 inch
Nominal Outside Diameter (D) - 3.5625 inch
Maximum Outside Diameter (D) - 3.5625 inch
Minimum Outside Diameter (D) - 3.5617 inch
Inner Ring Width (B) - 2.07 (+0.000 to -0.005) inch
Outer Ring Width (C) - 1.687 (+0.000 to -0.005) inch
Sphere Diameter (K) - 3.235 inch
Unmounted Diametral Clearance - 0.004/0.008 inch
End Plate Diameter (G) - 2.5 inch
Tilt Angle (α) - 14°
Maximum Housing Fillet (r2) - 0.032 inch
Approximate Weight - 3.7 lbs
Inner Ring Clamping Force** - 16000 lbf
Static Radial Load Limit - 191000 lbf
Static Thrust Load Limit - 42000 lbf
Dynamic Radial Load Limit - 47700 lbf
Maximum Recommended Mounting Dimensions Housing Bore ISO N7 (Press Fit) - 3.5621 inch
Minimum Recommended Mounting Dimensions Housing Bore ISO N7 (Press Fit) - 3.5607 inch
Maximum Recommended Mounting Dimensions Housing Bore ISO R7 (Press Fit) - 3.561 inch
Minimum Recommended Mounting Dimensions Housing Bore ISO R7 (Press Fit) - 3.5596 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.678 kg

Other salient points to be noted :
• All dimensions apply before MoS2 coating.
• Ultimate static and impact loads should not exceed 150% of catalog ratings.

* The nominal bore diameter is measured at the inner ring center.
** Higher clamping forces reduce bearing clearance.

♦ ♦ Images are for representation purposes only
