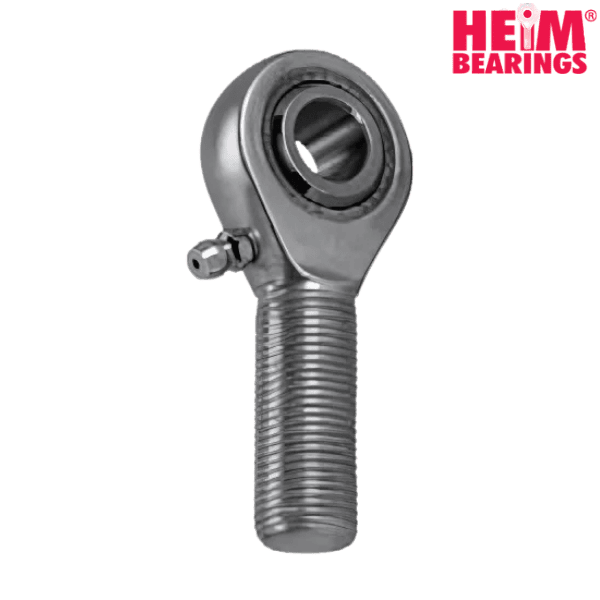

BHM4 RBC HEIM

Brand - RBC HEIM
Item Number - BHM4 RBC HEIM
Category - Rod Ends (Precision Extra Capacity Series)

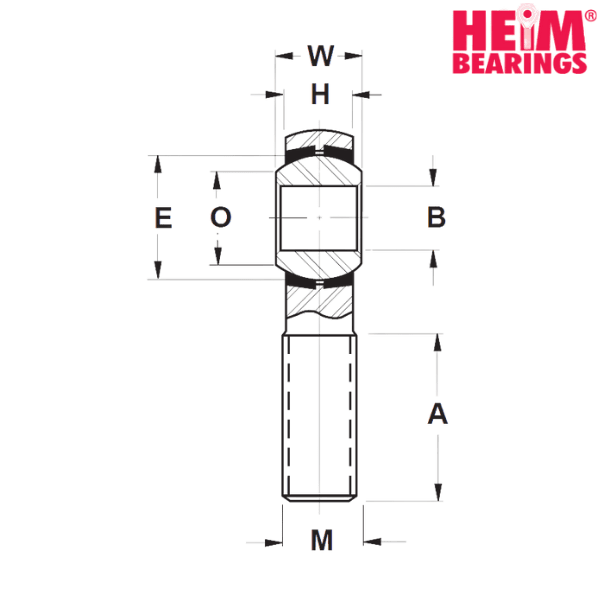

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.25 (+.0015 to - .0005) inch
Ball Width (W) - 0.375 inch
Housing Width (H) - 0.281 (+.005 to - .005) inch

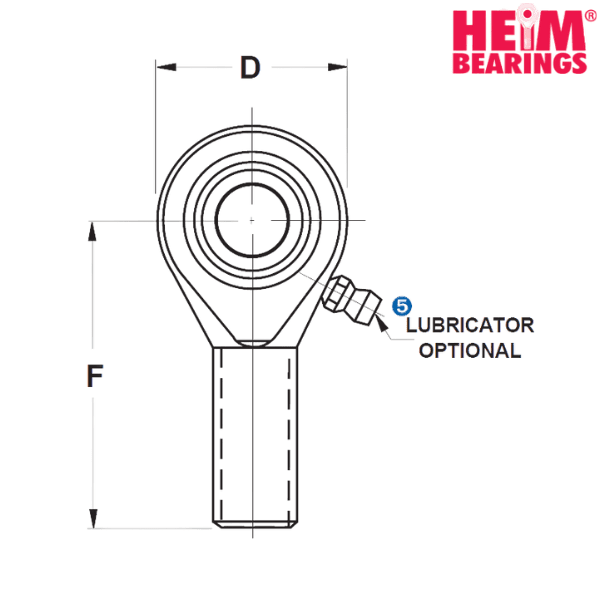

Head Diameter (D) - 0.75 (+.010 to - .010) inch
Length to Center of Ball (F) - 1.562 (+.010 to - .010) inch
Thread Length (A) - 1 (+.062 to - .031) inch
Thread Size (M) - 0.2500 - 28 (UNF-3A) inch
Ball Diameter (E) - 0.515 inch
Ball Flat Diameter (O) - 0.353 inch
Maximum Static Radial Load (Without Lubricator) - 4290 lbf
Approximate Weight - 0.05 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.023 kg

Other salient points to be noted :
• Outer Member = 4130 or 4340 Alloy steel, heat treated, magnetic particle inspected, with protective coating for corrosion resistance.
• Ball = 52100 Alloy steel, heat treated, chrome plated.
• Inserts = Copper alloy.
• Add letter “L” to prefix to indicate Left Hand thread. Example: BHML4
• Lubricator optional on BHM series. Example: BHM4G
