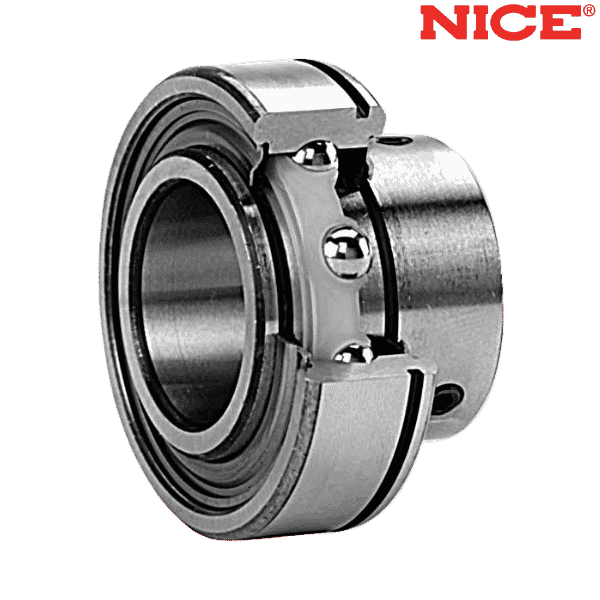

7614™ RBC NICE

Brand - RBC NICE
Item Number - 7614™ RBC NICE
Category - Heavy Duty Precision Ground Radial Bearings with Extended Inner Ring

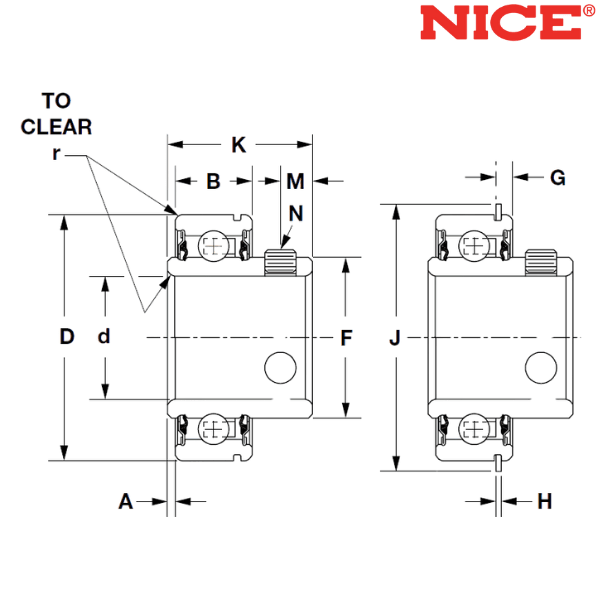

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 0.875 (+.0008 to -.0000) inch
Outer Diameter (D) - 2 (+.0000 to -.0005) inch
Width (B) - 0.625 (+.000 to -.005) inch
Dimension (A) - 0.0625 inch
Dimension (F) - 1.306 inch
Inner Width (G) - 0.136 (+.000 to -.005) inch
Dimension (H) - 0.042 inch
Dimension (J) - 2.156 inch
Dimension (K) - 1.179 (+.000 to -.005) inch
Dimension (M) - 0.261 inch
2 Set Screws (N) - 1/4-28
Radius (r) * - 0.035 inch
Basic Dynamic Load Rating (C) - 2970 lbf
Basic Static Load Rating (C0) - 1350 lbf
Weight (W) ** - 0.43 lbs

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 22.23 (+.020 to -.000) mm
Outer Diameter (D) - 50.8 (+.000 to -.013) mm
Width (B) - 15.88 (+.00 to -.13) mm
Dimension (A) - 1.59 mm
Dimension (F) - 33.17 mm
Inner Width (G) - 3.45 (+.00 to -.13) mm
Dimension (H) - 1.07 mm
Dimension (J) - 54.77 mm
Dimension (K) - 29.95 (+.00 to -.13) mm
Dimension (M) - 6.63 mm
Radius (r) * - 0.89 mm
Basic Dynamic Load Rating (C) - 13217 N
Basic Static Load Rating (C0) - 6008 N
Weight (W) ** - 0.2 kg

Some features about this bearing :
• Precision Ground On All Contact Surfaces, Similar to The 1600 Series™ Bearings
• Easy to Use Inch Dimensions
• Medium Loads
• Max Speed Range: 5000 - 6000 RPM
• Through Hardened
• Nylon Retainer Standard
• Double Sealed Standard
• Highly Efficient Single Lip Contact Seal
• Available Single Sealed or Open
• Extended Inner Ring with Set Screws
• All Bearings Have a Snap Ring Groove (Snap Ring Assembled as an Option)
• Recommended for Applications Where Accurate, Quiet Performance and Superior Sealing are Required

Other salient points to be noted :
• When ordering please indicate designation and style letters of bearing desired (i.e. DL or DLG)
• All bearing designations listed herein are trademarks of RBC Nice® bearings
• For this bearing Tolerance will be +.0000/-.0006 (+000/-.015)

* Radius R indicates the maximum fillet radius in housing or shaft which bearing will clear
** Weights given are for greased and sealed versions

♦ ♦ For possible suffixes refer to the 4th image
♦ ♦ Images are for representation purposes only
