Description
Brand - FAG
Item Number - 6348-M-C3 FAG

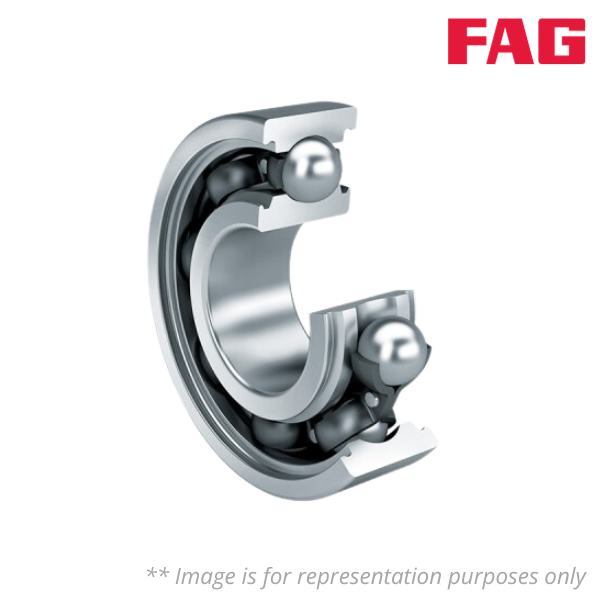

Category - Deep Groove Ball Bearing Single Row

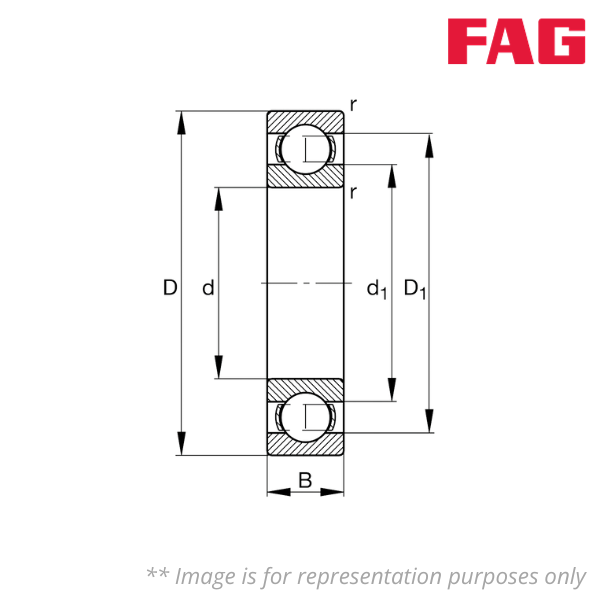

Inner Diameter(d) mm - 240
Outer Diameter(D) mm - 500
Weight (Kg) - 96.4
Inner Width(B) mm - 95
Minimum Chamfer Dimension(r) mm - 5
Shoulder diameter outer ring(D1) mm - 411.3
Shoulder diameter inner ring(d1) mm - 328.7
Minimum diameter shaft shoulder(da) mm - 260
Maximum diameter of housing shoulder(Da) mm - 480
Maximum fillet radius(ra) mm - 4
Basic Dynamic load rating(Cr) kN - 465
Basic Static load rating(C0r) kN - 620
Fatigue limit load current(Cur) kN - 21.8
Calculation factor(f0) - 14.2
Limiting speed (RPM) - 3000
Reference speed (RPM) - 1800
