Description
Brand - NILOS
Item Number - 6310 ZJV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing

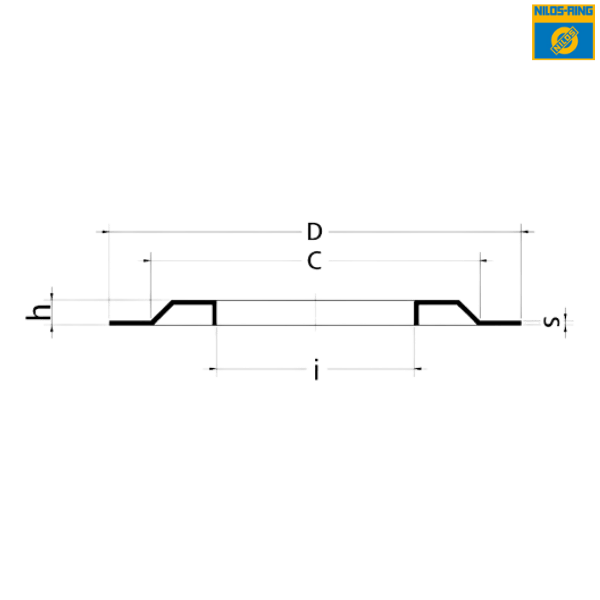

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 62 mm
Dimension (c) - 86 mm
Outer Diamter (D) - 110 mm
Width (h) - 3 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (63 Series with Shields or Seals) :
Bearing Part Number - 6310 Z
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 50 mm
Outer Diameter (D) - 110 mm
Width (B) - 27 mm

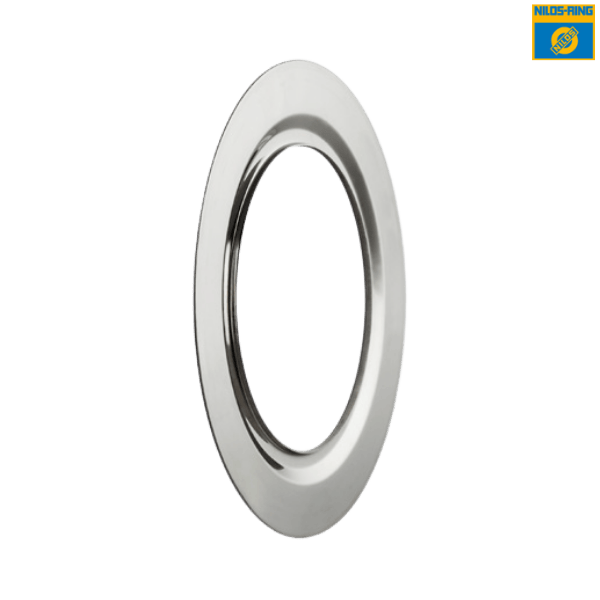

♦ ♦ Images are for representation purposes only
