Description
Brand - SKF
Item Number - 6048 M/C4S0VG2211 SKF

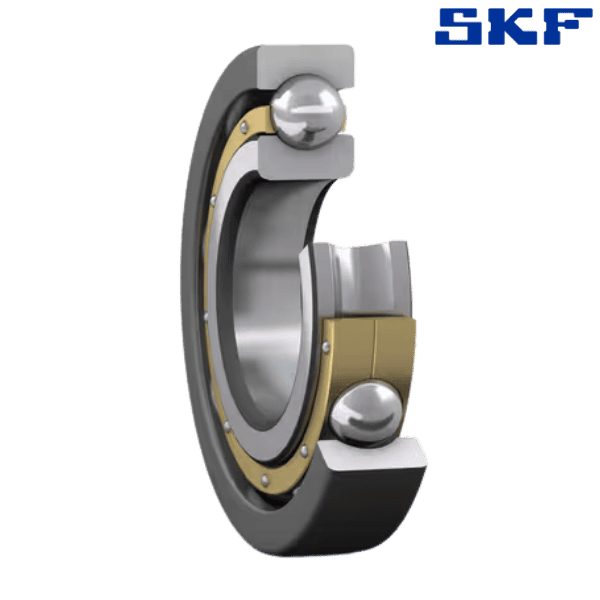

Category - Traction Motor, INSOCOAT Deep Groove Ball Bearings

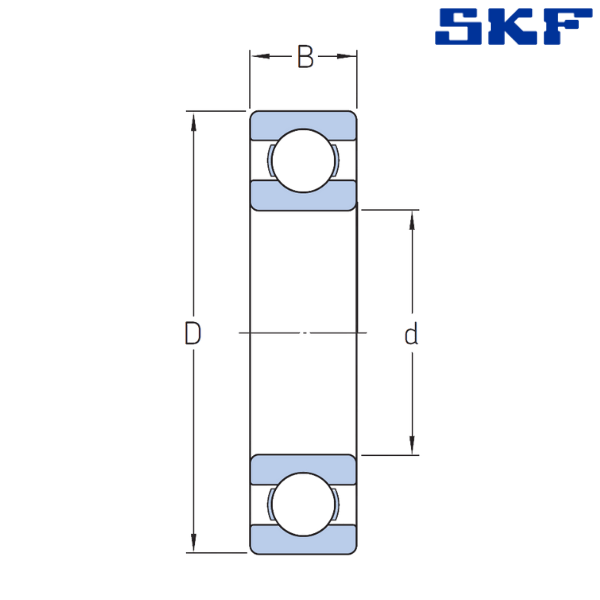

Bore Diameter (d) mm - 240
Outer Diameter (D) mm - 360
Width (B) mm - 56
Dynamic Load Rating (C) kN - 255
Static Load Rating (C0) kN - 315
Limiting Speed (r/min) - 3000
Weight (Kg) - 20.19
Designation Prefixes and Suffixes:
M - Machined Brass Cage, Rolling Element Centred
C4 - Bearing Internal Clearance Greater Than C3
VG - This Suffix is Followed By Three or Four Digit Numbers Refer to Special Executions.
** Images are for representation purposes only
