Description
Brand - NILOS
Item Number - 6002 ZAV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing

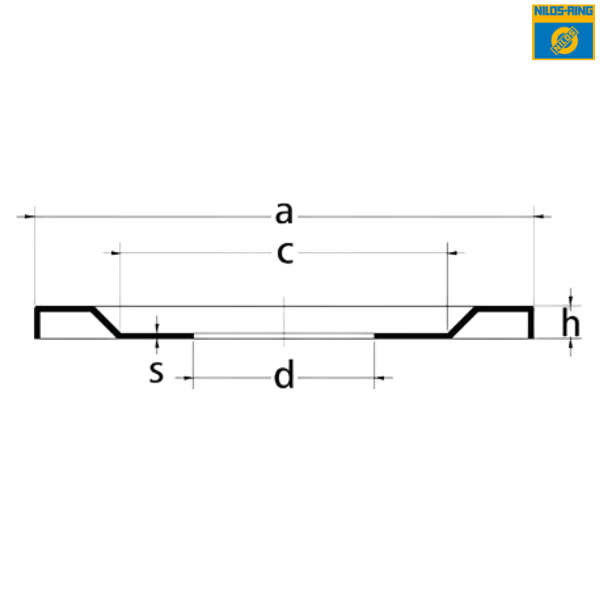

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 15 mm
Outer Diameter (a) - 29.5 mm
Dimension (C) - 21 mm
Widtth (h) - 2 mm
Material Thickness (s) - 0.3 mm

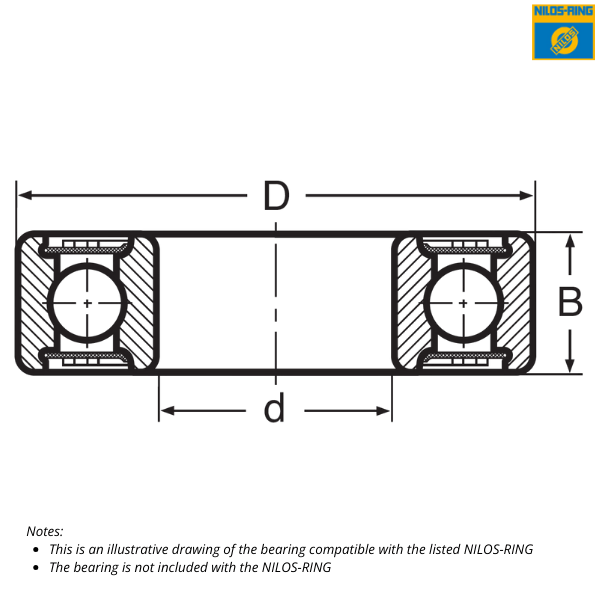

Description of Compatible Bearing (60 Series with Shields or Seals) :
Bearing Part Number - 6002 Z
Bearing Type - Single Row Deep Groove Ball Bearing (With Shields or Seals)
Inner Diameter (d) - 15 mm
Outer Diameter (D) - 32 mm
Width (B) - 9 mm

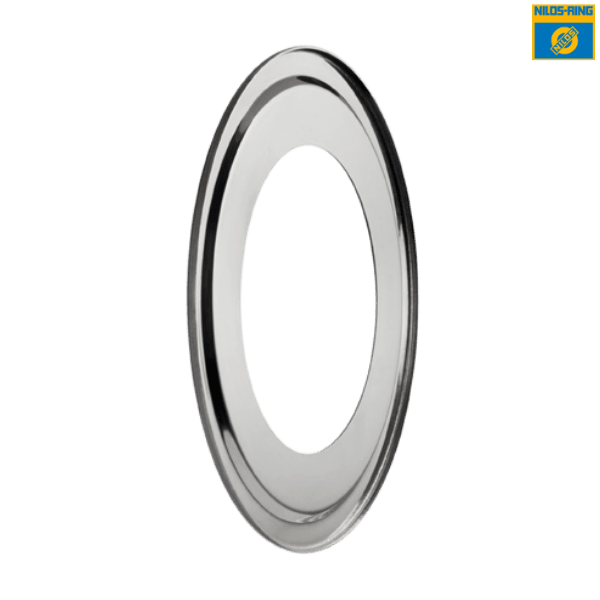

♦♦ Images are for representation purposes only
