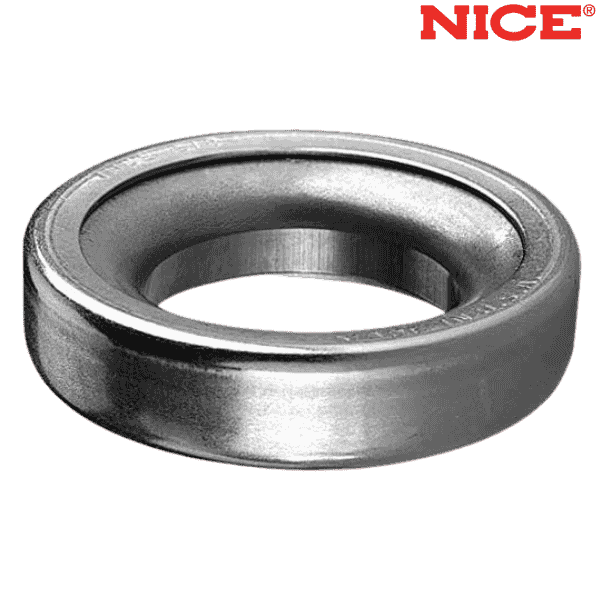

515™ RBC NICE

Brand - RBC NICE
Item Number - 515™ RBC NICE
Category - Single Row Unground Combination Radial and Thrust Bearings

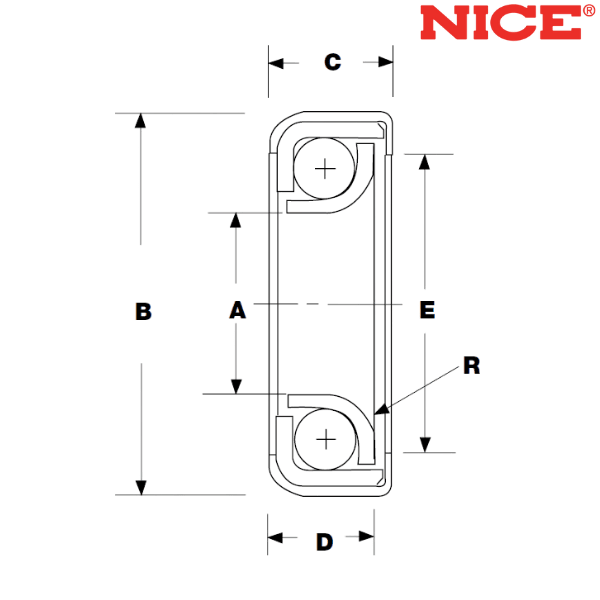

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (A) - 1 (+.008 to -.000) inch
Outer Diameter (B) - 2.047 (+.005 to -.000) inch
Width (C) - 0.609 (+.010 to -.010) inch
Dimension (D) - 0.547 (+.015 to -.015) inch
Dimension (E) - 1.625 inch
Radius (R) * - 0.219 inch
Number of Balls - 14 pcs.
Size of Balls - 0.3125 inch
Weight (W) - 0.25 lbs
Combined Radial Capacity as per 10 RPM - 573 lbf
Combined Thrust Capacity as per 10 RPM - 382 lbf
Combined Radial Capacity as per 50 RPM - 400 lbf
Combined Thrust Capacity as per 50 RPM - 267 lbf
Combined Radial Capacity as per 100 RPM - 284 lbf
Combined Thrust Capacity as per 100 RPM - 189 lbf
Combined Radial Capacity as per 250 RPM - 181 lbf
Combined Thrust Capacity as per 250 RPM - 121 lbf
Combined Radial Capacity as per 500 RPM - 127 lbf
Combined Thrust Capacity as per 500 RPM - 85 lbf
Combined Radial Capacity as per 1000 RPM - 90 lbf
Combined Thrust Capacity as per 1000 RPM - 60 lbf
Thrust Capacity as per 10 RPM - 569 lbf
Thrust Capacity as per 50 RPM - 459 lbf
Thrust Capacity as per 100 RPM - 339 lbf
Thrust Capacity as per 250 RPM - 197 lbf
Thrust Capacity as per 500 RPM - 142 lbf
Thrust Capacity as per 1000 RPM - 118 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (A) - 25.40 (+.20 to -.00) mm
Outer Diameter (B) - 51.99 (+.013 to -.00) mm
Width (C) - 15.48 (+.25 to -.25) mm
Dimension (D) - 13.89 (+.38 to -.38) mm
Dimension (E) - 41.28 mm
Radius (R) * - 5.56 mm
Size of Balls - 7.94 mm
Weight (W) - 0.11 kg
Combined Radial Capacity as per 10 RPM - 2550 N
Combined Thrust Capacity as per 10 RPM - 1700 N
Combined Radial Capacity as per 50 RPM - 1780 N
Combined Thrust Capacity as per 50 RPM - 1188 N
Combined Radial Capacity as per 100 RPM - 1264 N
Combined Thrust Capacity as per 100 RPM - 841 N
Combined Radial Capacity as per 250 RPM - 805 N
Combined Thrust Capacity as per 250 RPM - 538 N
Combined Radial Capacity as per 500 RPM - 565 N
Combined Thrust Capacity as per 500 RPM - 378 N
Combined Radial Capacity as per 1000 RPM - 401 N
Combined Thrust Capacity as per 1000 RPM - 267 N
Thrust Capacity as per 10 RPM - 2532 N
Thrust Capacity as per 50 RPM - 2043 N
Thrust Capacity as per 100 RPM - 1509 N
Thrust Capacity as per 250 RPM - 877 N
Thrust Capacity as per 500 RPM - 632 N
Thrust Capacity as per 1000 RPM - 525 N

Some features about this bearing :
• Angular Contact Unground Bearing
• Easy To Use Inch Dimensions
• Moderate Loads
• Max Speed Range: 1000 - 1200 RPM
• Hardened Rings
• Full Complement of Balls
• Fully Unitized Assembly

Other salient points to be noted :
• Balls - Carbon Steel Grade 200
• Rings - Carbon Steel, Case Hardened
• Bands - 1010 Carbon Steel, Soft
• All bearing designations listed herein are trademarks of RBC Nice® bearings
• Bearings provided dipped in light oil

* Maximum fillet radius on shaft which the bearing will clear

♦ ♦ For possible suffixes refer to the 3rd image
♦ ♦ Images are for representation purposes only
