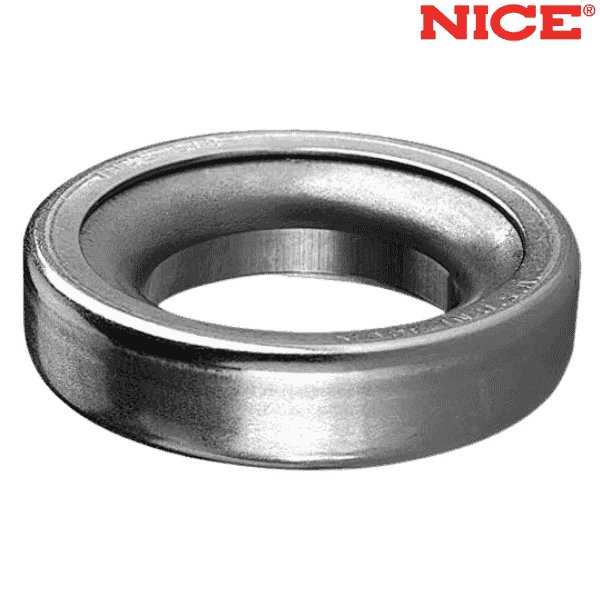

511™ RBC NICE

Brand - RBC NICE
Item Number - 511™ RBC NICE
Category - Single Row Unground Combination Radial and Thrust Bearings

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (A) - 0.625 (+.005 to -.000) inch
Outer Diameter (B) - 1.359 (+.005 to -.000) inch
Width (C) - 0.422 (+.010 to -.010) inch
Dimension (D) - 0.375 (+.015 to -.015) inch
Dimension (E) - 1.047 inch
Radius (R) * - 0.172 inch
Number of Balls - 16 pcs.
Size of Balls - 0.1875 inch
Weight (W) - 0.08 lbs
Combined Radial Capacity as per 10 RPM - 235 lbf
Combined Thrust Capacity as per 10 RPM - 157 lbf
Combined Radial Capacity as per 50 RPM - 167 lbf
Combined Thrust Capacity as per 50 RPM - 111 lbf
Combined Radial Capacity as per 100 RPM - 117 lbf
Combined Thrust Capacity as per 100 RPM - 78 lbf
Combined Radial Capacity as per 250 RPM - 74 lbf
Combined Thrust Capacity as per 250 RPM - 50 lbf
Combined Radial Capacity as per 500 RPM - 52 lbf
Combined Thrust Capacity as per 500 RPM - 35 lbf
Combined Radial Capacity as per 1000 RPM - 37 lbf
Combined Thrust Capacity as per 1000 RPM - 25 lbf
Thrust Capacity as per 10 RPM - 234 lbf
Thrust Capacity as per 50 RPM - 189 lbf
Thrust Capacity as per 100 RPM - 140 lbf
Thrust Capacity as per 250 RPM - 81 lbf
Thrust Capacity as per 500 RPM - 59 lbf
Thrust Capacity as per 1000 RPM - 49 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (A) - 15.88 (+.013 to -.00) mm
Outer Diameter (B) - 34.52 (+.013 to -.00) mm
Width (C) - 10.72 (+.25 to -.25) mm
Dimension (D) - 9.53 (+.38 to -.38) mm
Dimension (E) - 26.59 mm
Radius (R) * - 4.37 mm
Size of Balls - 4.76 mm
Weight (W) - 0.03 kg
Combined Radial Capacity as per 10 RPM - 1046 N
Combined Thrust Capacity as per 10 RPM - 699 N
Combined Radial Capacity as per 50 RPM - 743 N
Combined Thrust Capacity as per 50 RPM - 494 N
Combined Radial Capacity as per 100 RPM - 521 N
Combined Thrust Capacity as per 100 RPM - 347 N
Combined Radial Capacity as per 250 RPM - 329 N
Combined Thrust Capacity as per 250 RPM - 223 N
Combined Radial Capacity as per 500 RPM - 231 N
Combined Thrust Capacity as per 500 RPM - 156 N
Combined Radial Capacity as per 1000 RPM - 165 N
Combined Thrust Capacity as per 1000 RPM - 111 N
Thrust Capacity as per 10 RPM - 1041 N
Thrust Capacity as per 50 RPM - 841 N
Thrust Capacity as per 100 RPM - 623 N
Thrust Capacity as per 250 RPM - 360 N
Thrust Capacity as per 500 RPM - 263 N
Thrust Capacity as per 1000 RPM - 218 N

Some features about this bearing :
• Angular Contact Unground Bearing
• Easy To Use Inch Dimensions
• Moderate Loads
• Max Speed Range: 1000 - 1200 RPM
• Hardened Rings
• Full Complement of Balls
• Fully Unitized Assembly

Other salient points to be noted :
• Balls - Carbon Steel Grade 200
• Rings - Carbon Steel, Case Hardened
• Bands - 1010 Carbon Steel, Soft
• All bearing designations listed herein are trademarks of RBC Nice® bearings
• Bearings provided dipped in light oil

* Maximum fillet radius on shaft which the bearing will clear

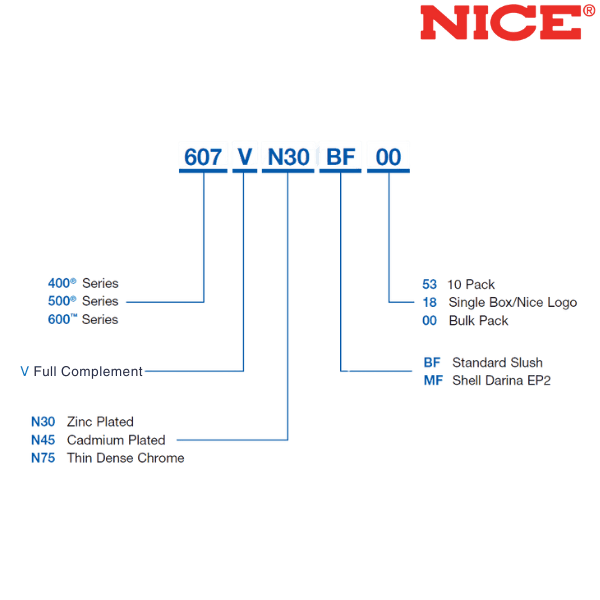

♦ ♦ For possible suffixes refer to the 3rd image
♦ ♦ Images are for representation purposes only
