Description
Brand - DODGE

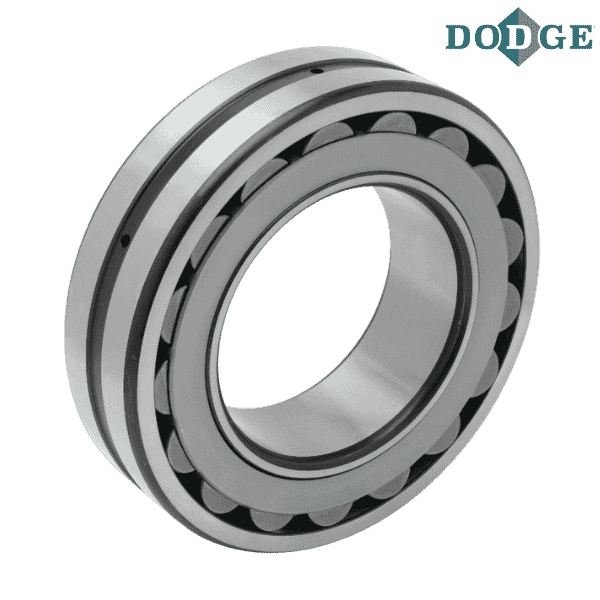

Item Number - 423114 DODGE - BRG22326KC3
Category - USAF 22300K Spherical Roller Bearings
Description - BRG22326KC3
Shaft Size (inch) - 4.4375
Housing - 626
Bearing Number - 22326K
Approximate Weight (lbs) - 59.7
A (inch) - 5.1181
A (mm) - 130
Outer Diameter (B) inch - 11.0236
Outer Diameter (B) mm - 280
C (inch) - 3.6614
C (mm) - 93
Notes :
BRG - Roller Bearing
223 - 22300 Series
K - Tapered Adapter Sleeve Mounting. Otherwise Bearing Has Cylindrical Bore for Direct Mounting
C3 - Bearing clearance
** Images are for representation purposes only
