Description
Brand - NILOS
Item Number - 4205 AV NILOS
Category - NILOS-RING for Double Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 25 mm
Outer Diameter (a) - 47.8 mm
Dimension (C) - 35 mm
Widtth (h) - 2.5 mm
Material Thickness (s) - 0.3 mm

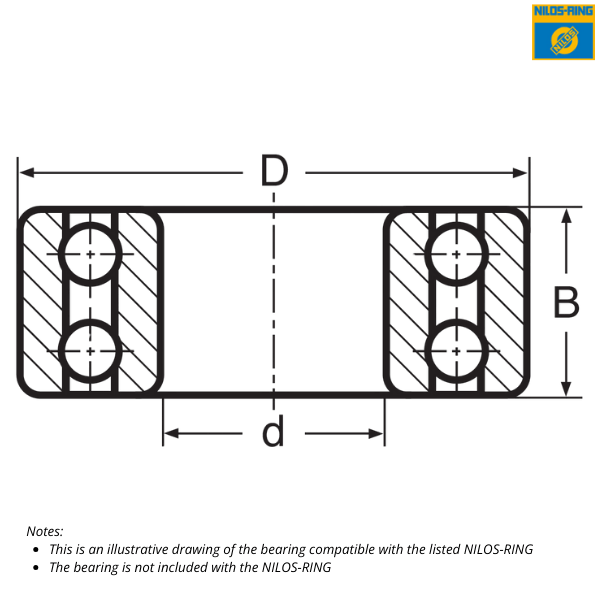

Description of Compatible Bearing (42 Series) :
Bearing Part Number - 4205
Bearing Type - Double Row Deep Groove Ball Bearing
Inner Diameter (d) - 25 mm
Outer Diameter (D) - 52 mm
Width (B) - 18 mm
♦♦ Images are for representation purposes only
