Description
Brand - FAG
Item Number - 4200-BB-TVH FAG
Category - Deep Groove Ball Bearing Double Row
Bore Diameter (d) mm - 10
Outside Diameter (D) mm - 30
Width (B) mm - 14
Basic Dynamic Load Rating (Cr) N - 8300
Basic Static Load Rating (C0r) N - 4750
Fatigue Load Limit, Radial (Cur) N - 247
Limiting Speed (nG) min–1 - 21800
Calculation Factor (f0) - 13.1
Weight (m) Kg - 0.051
Minimum Chamfer Dimension (r min) mm - 0.6
Shoulder Diameter Inner Ring (d1) mm - 16.6
Minimum Diameter Shaft Shoulder (da) mm - 14.2
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
BB - Modified Internal Construction

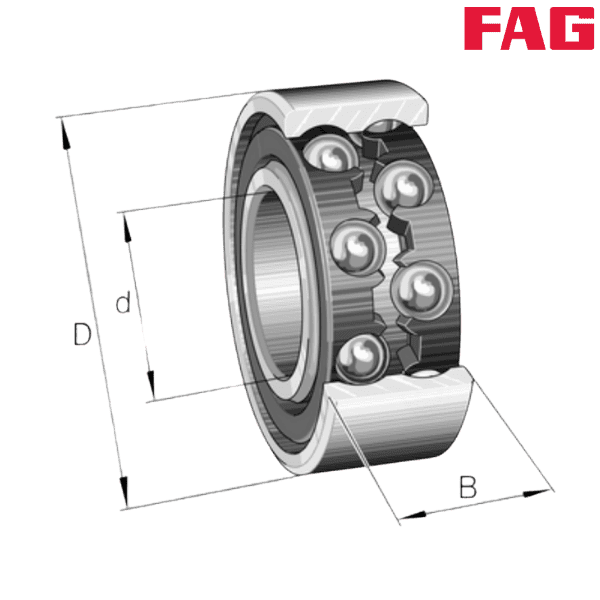

** Images are for representation purposes only
