Description
Brand - SKF
Item Number - 32219 J2/VE141 SKF
Category - Gearbox, Tapered roller bearings

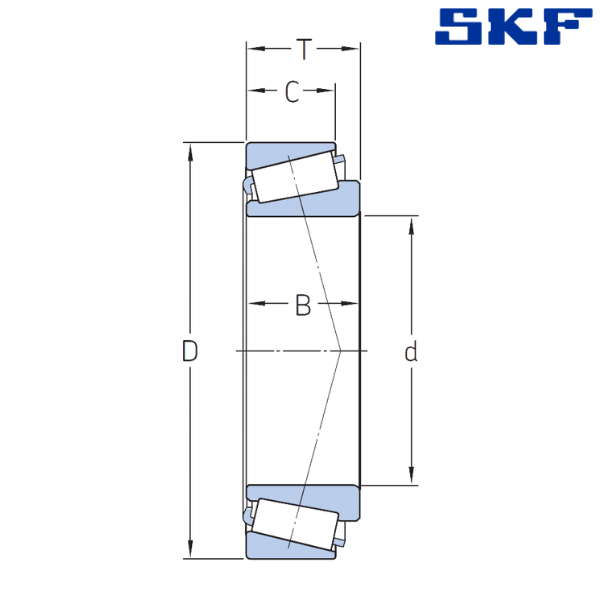

Bore Diameter (d) mm - 95
Outer Diameter (D) mm - 170
Total Width (T) mm - 45.5
Width of Inner Ring (B) mm - 43
Width of Outer Ring (C) mm - 37
Dynamic Load Rating (C) kN - 281
Static Load Rating (C0) kN - 390
Limiting Speed (r/min) - 3800
Weight (kg) - 4.09
Limiting Value (e) - 0.43
Calculation Factor (Y) - 1.4
Calculation Factor (Y0) - 0.8
Designation Prefixes and Suffixes:
J2 - Pressed Window-Type Steel Cage
VE - This Suffix Followed by Three or Four Digit Numbers Refer to Special Executions.

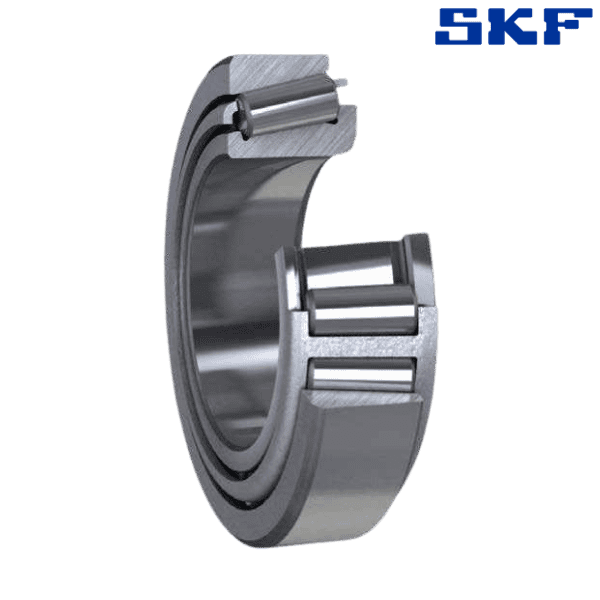

** Images are for representation purposes only
