3033™ RBC NICE

Brand - RBC NICE
Item Number - 3033™ RBC NICE
Category - Semi-Ground Radial Bearing

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 0.625 (+.005 to -.000) inch
Outer Diameter (D) - 1.75 (+.0000 to -.0005) inch
Width (B) - 0.5 (+.000 to -.005) inch
Basic Dynamic Load Rating (C) - 1300 lbf
Basic Static Load Rating (C0) - 1025 lbf
Weight (W) *** - 0.22 lbs

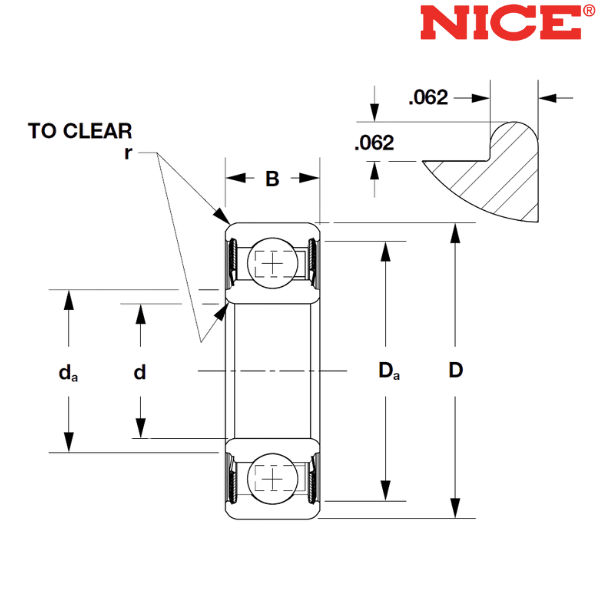

Minimum Abutment and Fillet Dimension (da) - 0.845 inch
Maximum Abutment and Fillet Dimension (Da) - 1.53 inch
Maximum Abutment and Fillet Dimension (r) - 0.025 inch

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 15.875 (+.13 to -.00) mm
Outer Diameter (D) - 44.45 (+.000 to -.013) mm
Width (B) - 12.7 (+.00 to -.13) mm
Basic Dynamic Load Rating (C) - 5785 N
Basic Static Load Rating (C0) - 4561 N
Weight (W) *** - 0.1 kg
Minimum Abutment and Fillet Dimension (da) - 21.46 mm
Maximum Abutment and Fillet Dimension (Da) - 38.86 mm
Maximum Abutment and Fillet Dimension (r) - 0.64 mm

Some notes about this bearing :
• Precision Ground On All Contact Surfaces Except Bore
• Easy To Use Inch Dimensions
• Economical Bearing for Lighter Loads than the 1600 Series® Bearings
• Max Speed Range: 2500 - 3000 RPM
• Hardened Bearing Steel
• Nylon Retainer Standard
• Greased, Double Sealed or Double Shielded Standard

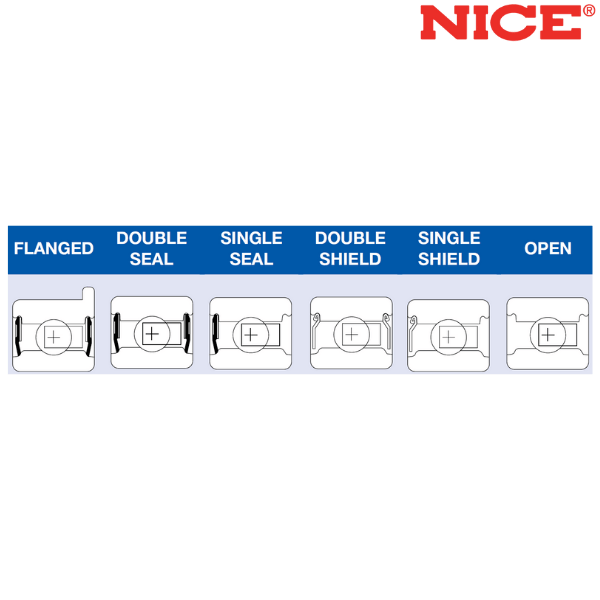

• Available Single Sealed or Single Shielded, Open, and With or Without Grease

Other salient points to be noted :
*** Weights given are for greased and sealed versions

• All bearing designations listed herein are trademarks of RBC Nice® bearings.

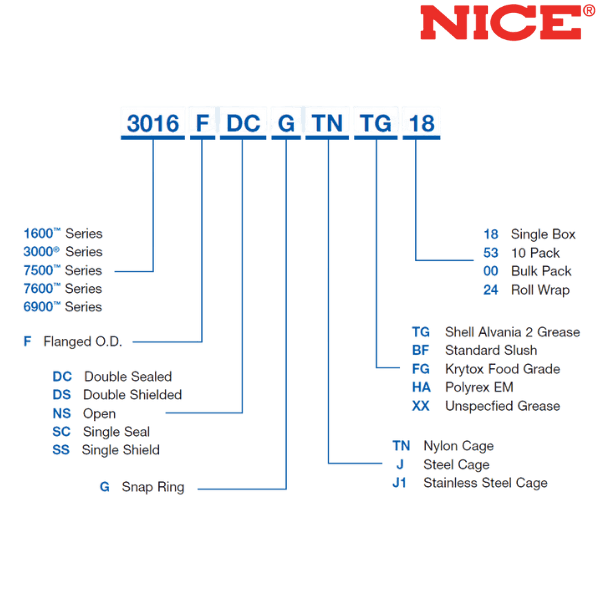

♦ ♦ For possible suffixes refer to the 4th image
♦ ♦ Images are for representation purposes only
