Description
Brand - FAG
Item Number - 239/750-MB-H40AB-T52B FAG
Category - Spherical Roller Bearing
Also known as - 239/750CA/C08W509 239/750-MB-H40AB-T52BW
Inner (d) MM - 750
Outer (D) MM - 1000
Width (B) MM - 185
Inner (d) Inch - 29.5276
Outer (D) Inch - 39.3701
Width (B) Inch - 7.2835
Weight (kg) - 420
Bore - C - Cylindrical Bore
Lubrication Enhancement - W59 - W26 + W31 + W33 Combined
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - Cn Normal Internal Play
Precision - Higher Running Acc. ISO Cl.5
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution

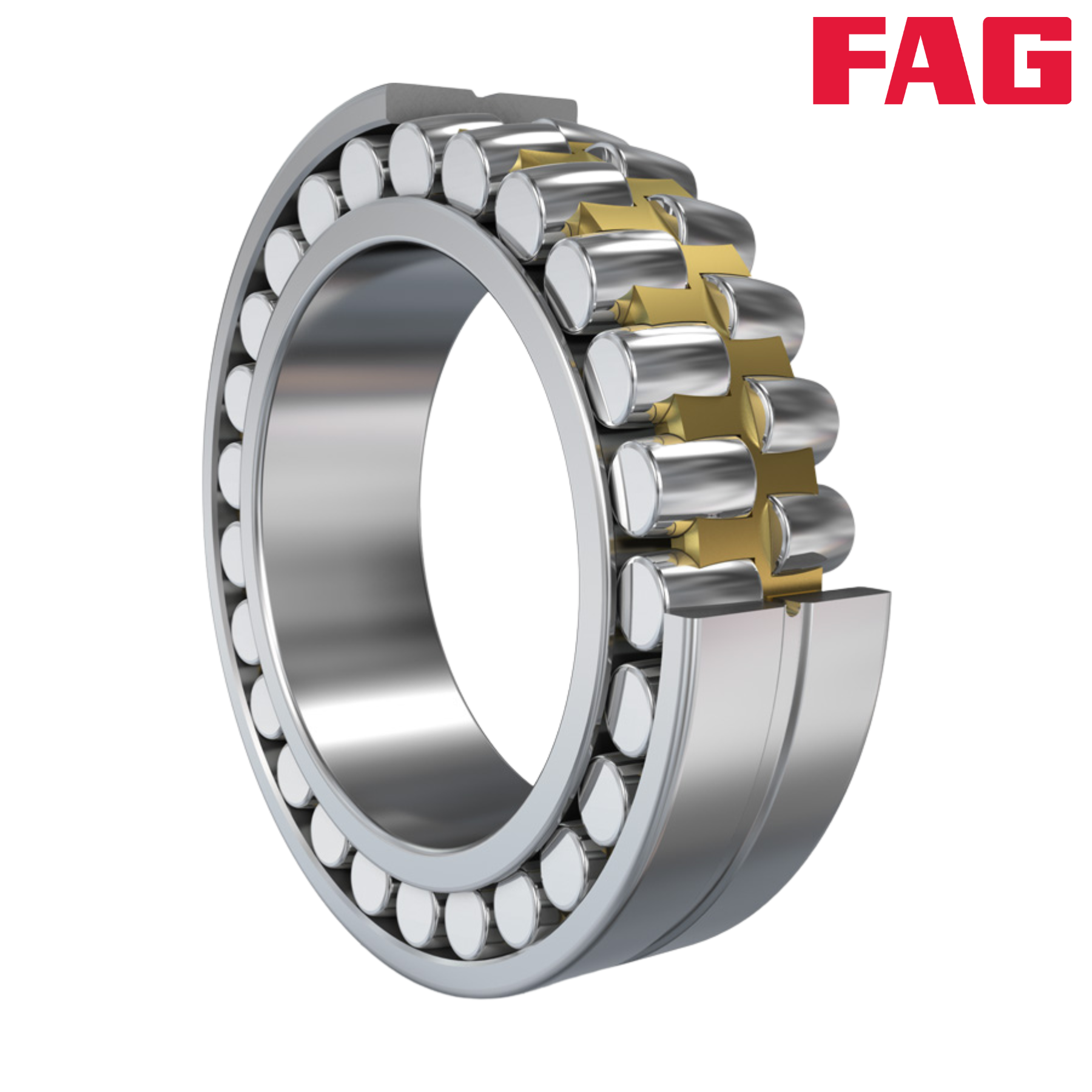

** Image is for representation purposes only
