Description
Brand - FAG
Item Number - 22228ES.TVPB.C3 FAG
Category - Spherical Roller Bearing
Inner (d) MM - 140
Outer (D) MM - 250
Width (B) MM - 68
Inner (d) Inch - 5.5118
Outer (D) Inch - 9.8425
Width (B) Inch - 2.6772
Weight (kg) - 13.05
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - P - Plastic Molded Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution

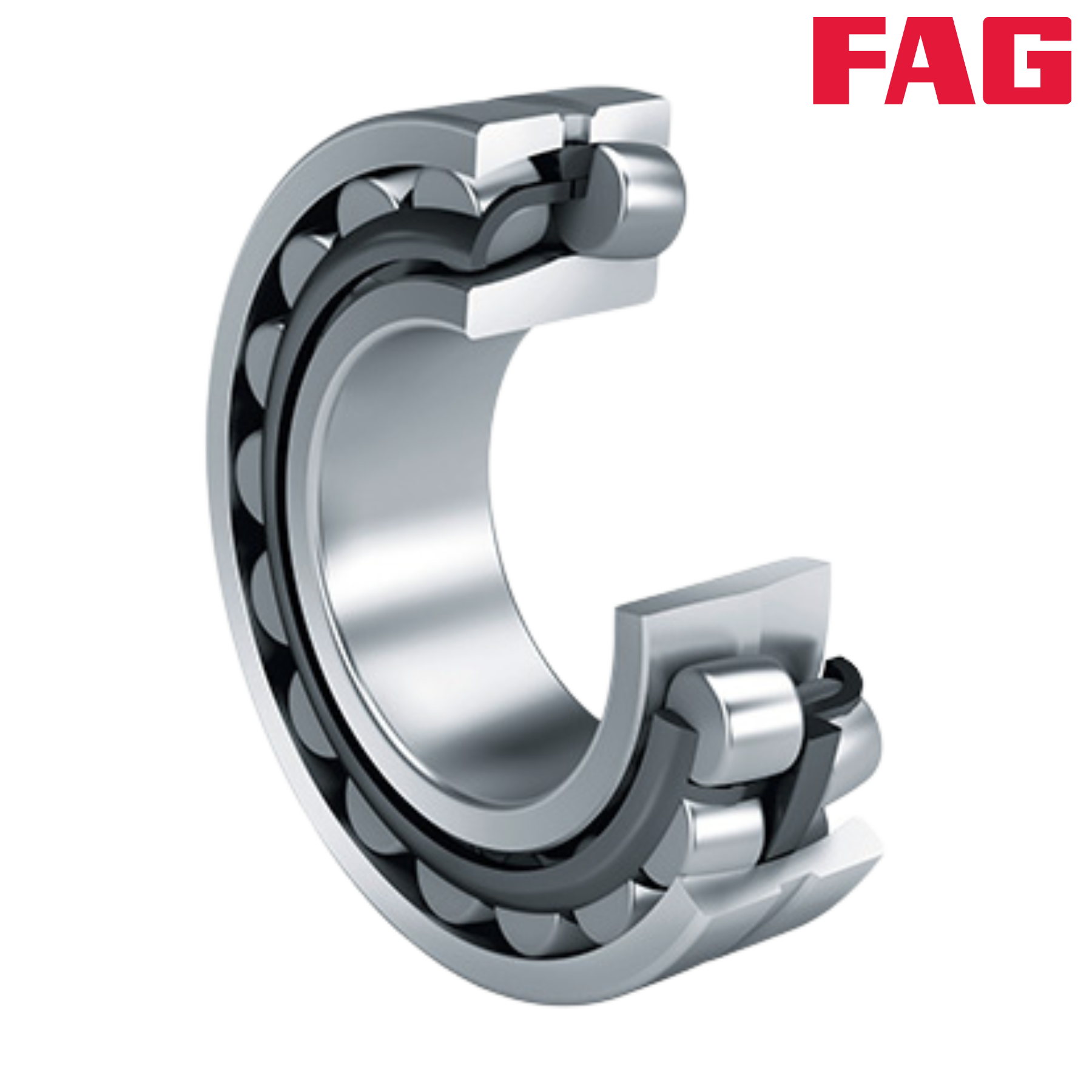

** Image is for representation purposes only
