Description
Brand - FAG
Item Number - 22219ESK.TVPB.C4.F80 FAG
Category - Spherical Roller Bearing
Inner (d) MM - 95
Outer (D) MM - 170
Width (B) MM - 43
Weight (kg) - 3.79
Bore - K - 1:12 Tapered Bore (Standard for Most Types)
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - P - Plastic Molded Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Vibrating Screen Execution
E - Maximum Capacity Design

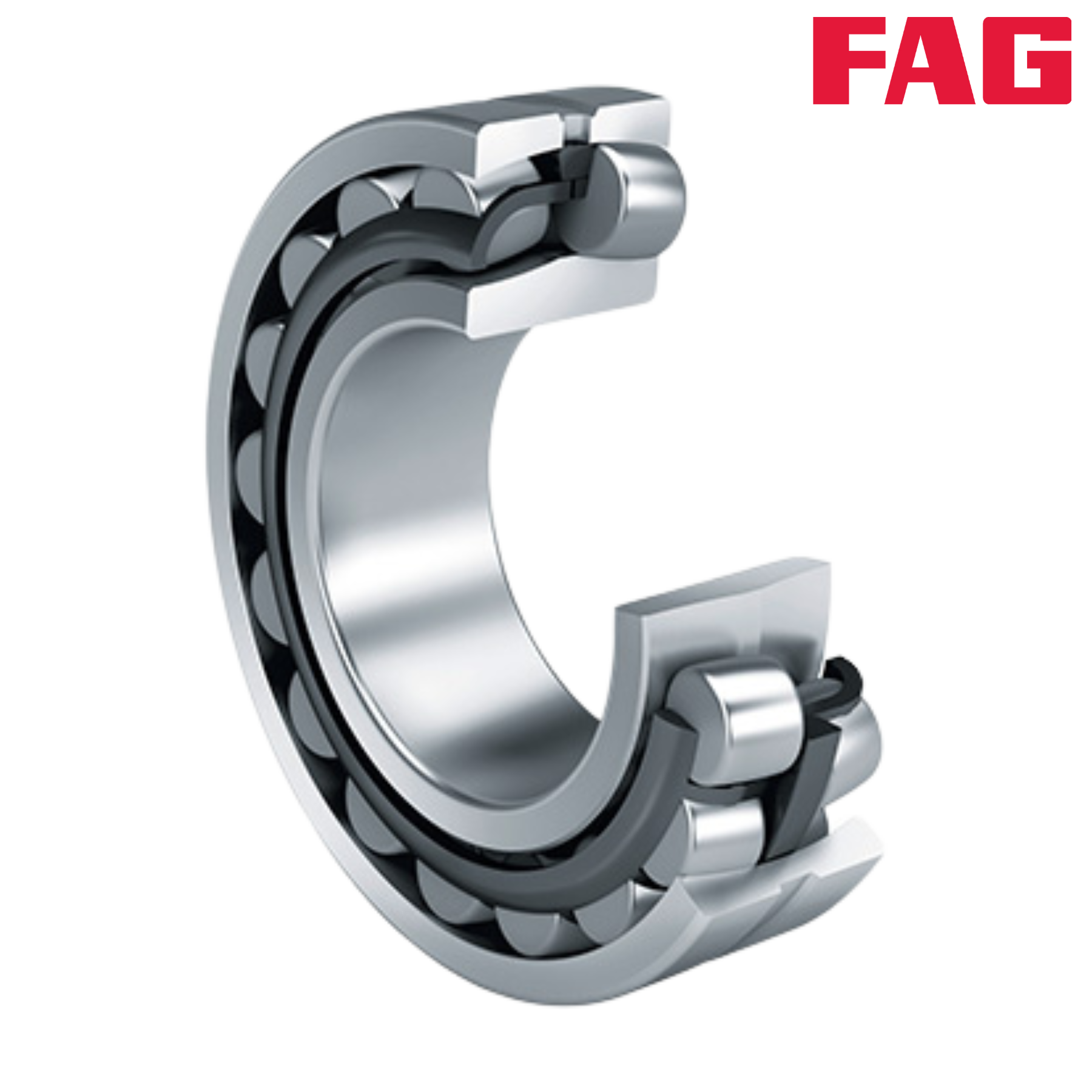

** Image is for representation purposes only
