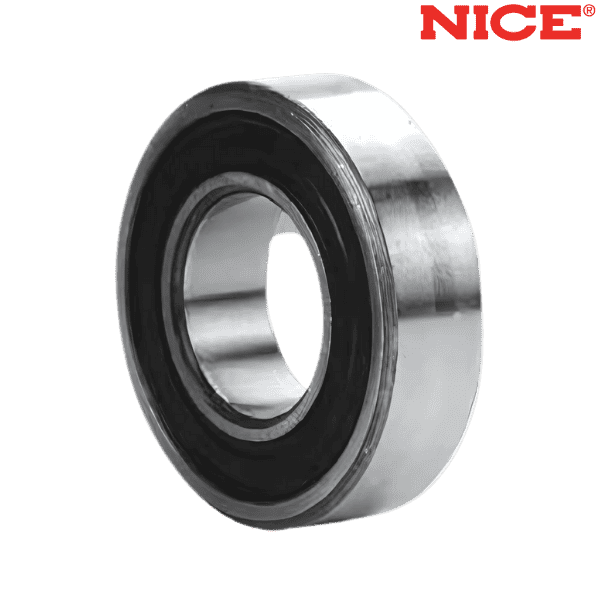

1633™ RBC NICE

Brand - RBC NICE
Item Number - 1633™ RBC NICE
Category - Precision Ground Radial Bearings

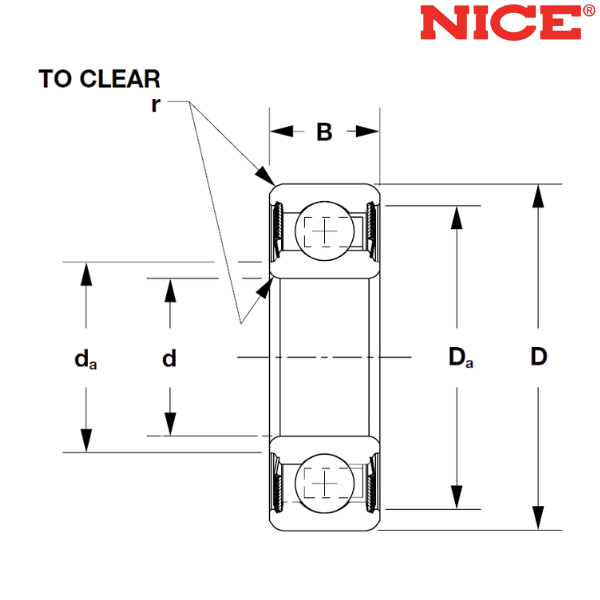

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (d) - 0.625 (+.0000 to -.0005) inch
Outer Diameter (D) - 1.75 (+.0000 to -.0005) inch
Width (B) - 0.5 (+.000 to -.005) inch
Basic Dynamic Load Rating (C) - 2593 lbf
Basic Static Load Rating (C0) - 1025 lbf
Weight (W) *** - 0.22 lbs
Minimum Abutment and Fillet Dimension (da) - 0.845 inch
Maximum Abutment and Fillet Dimension (Da) - 1.53 inch
Maximum Abutment and Fillet Dimension (r) - 0.025 inch

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 15.875 (+.000 to -.013) mm
Outer Diameter (D) - 44.45 (+.000 to -.013) mm
Width (B) - 12.7 (+.00 to -.13) mm
Basic Dynamic Load Rating (C) - 11539 N
Basic Static Load Rating (C0) - 4561 N
Weight (W) *** - 0.1 kg
Minimum Abutment and Fillet Dimension (da) - 21.46 mm
Maximum Abutment and Fillet Dimension (Da) - 38.86 mm
Maximum Abutment and Fillet Dimension (r) - 0.64 mm

Some notes about this bearing :
• Specially designed to offer low-cost yet high-quality solutions for most precision bearing applications
• Made in easy-to-use inch dimensions
• Recommended for Medium loads
• Maximum speeds up to 5000 rpm
• Precision ground on all surfaces, especially in ball grooves
• Undergo careful heat treatment for uniform hardness and maximum service life
• Equipped with a ball retainer/separator to reduce ball-to-ball contact friction
• Allows for higher operational speeds

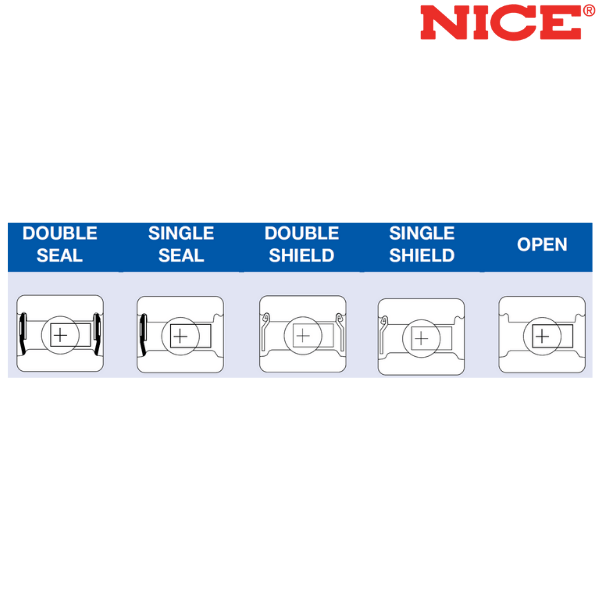

• Double sealed and double shielded bearings are pre-greased as standard
• Open and single closure bearings can be greased on request

Other salient points to be noted :
*** Weights given are for greased and sealed versions

• All bearing designations listed herein are trademarks of RBC Nice® bearings

♦ ♦ For possible suffixes refer to the 4th image
♦ ♦ Images are for representation purposes only
