Description
Brand - DODGE

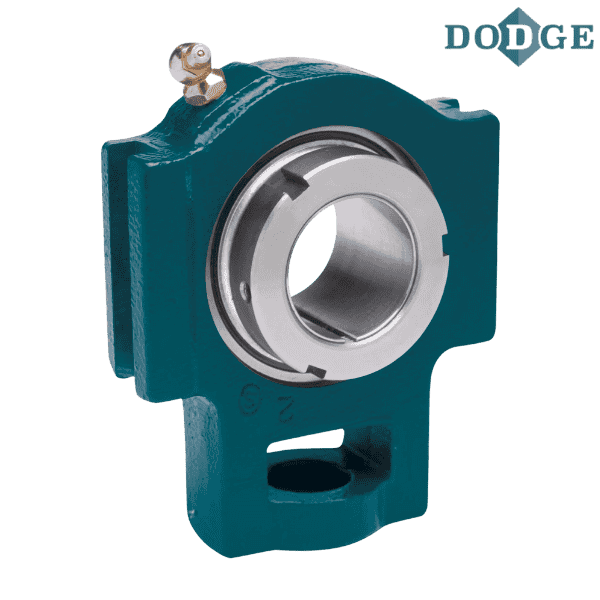

Item Number - 136136 DODGE - WSTU-GT-104S
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Wide Slot Take-Up Bearings)
Series - 206
Shaft Size (inch) - 1.25
Description - WSTU-GT-104S
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136221
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-06
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136527
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-06-104S-D
Weight (lbs) - 2.5
Take- Up Frame Size - WS308

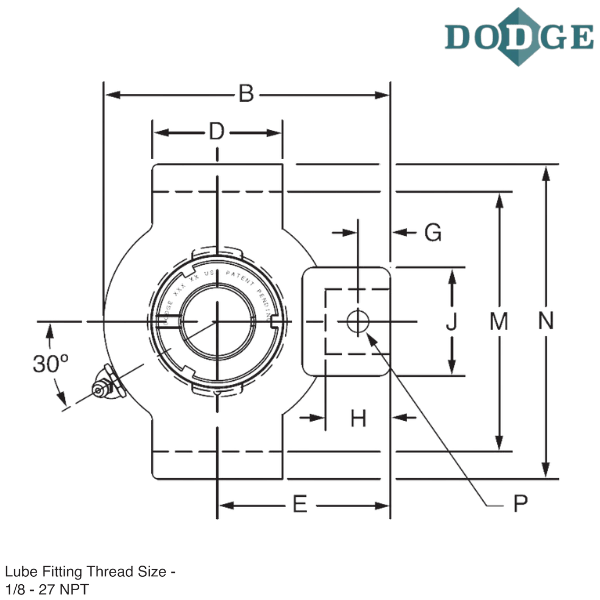

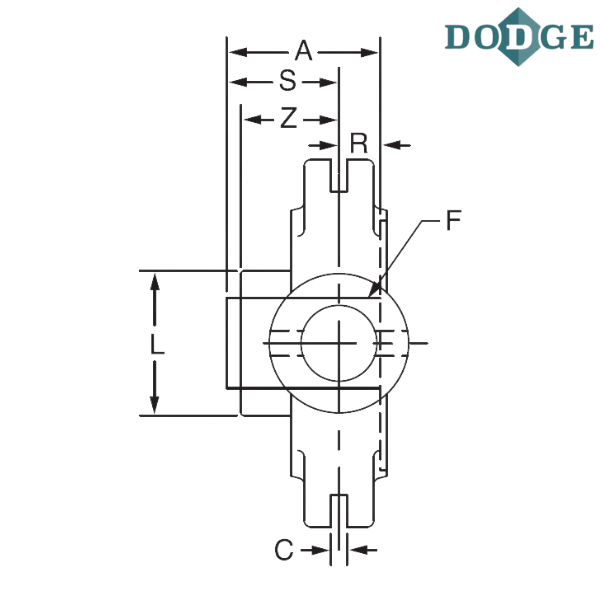

Length Through Bore (A) inch - 1.61
Overall Length (B) inch - 4.38
C (inch) - 0.531
D (inch) - 2.25
E (inch) - 2.75
F (Screw Diameter) inch - 0.75
G (inch) - 0.38
H (inch) - 0.63
J (inch) - 2.19
K (inch) - 1.44
L (inch) - 2.08
M (inch) - 3.480/3.510
Overall Width (N) inch - 4.13
R (inch) - 0.52
S (inch) - 1.09
Thickness (T) inch - 1.63
Z (inch) - 1.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
S - Next smaller ring size
** Images are for representation purposes only
