Description
Brand - DODGE

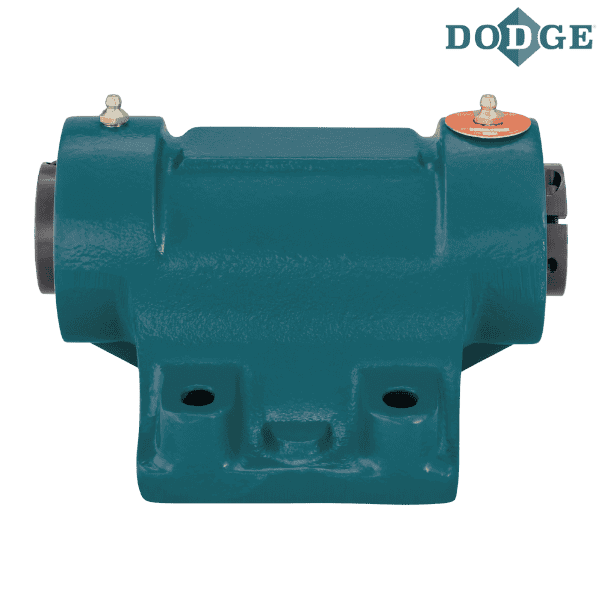

Item Number - 134189 DODGE - F&B-CC-103-DL
Category - Ball Bearings (CC DL Fan and Blower Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.1875
Description - F&B-CC-103-DL
Weight (lbs) - 16.24

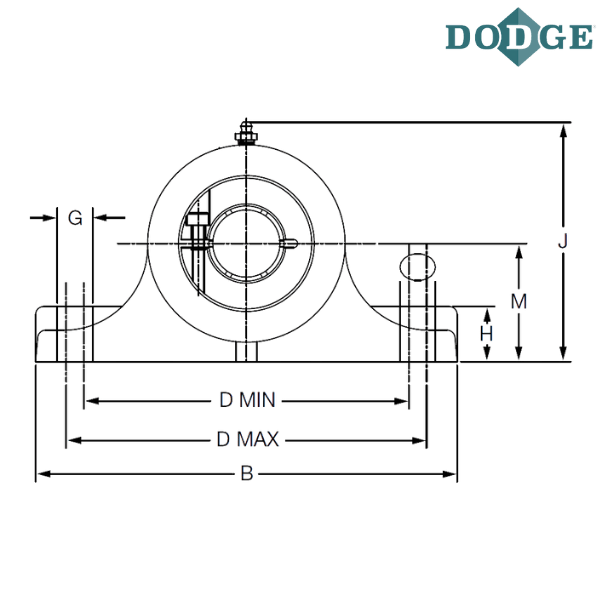

Length Through Bore (A) inch - 7.96
Overall Length (B) inch - 7.75
C (inch) - 4.25
Bolt to Bolt Minimum Distance (D min) inch - 6
Bolt to Bolt Maximum Distance (D max) inch - 6.5
Bolt Width (E) inch - 2.75
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.63
H (inch) - 1.25
Overall Height (J) inch - 4.56
L (inch) - 2.22
Base to Center Height (M) inch - 2.5
Bearing Centers (BC) inch - 6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
DL - Wide inner ring, normal duty, concentric clamp collar
** Images are for representation purposes only
