Description
Brand - DODGE
Item Number - 128835 DODGE - F2B-DLM-100
Category - D-LOK® Ball Bearings (DLM Medium Duty 2-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1
Description - F2B-DLM-100
Weight (lbs) - 2.6

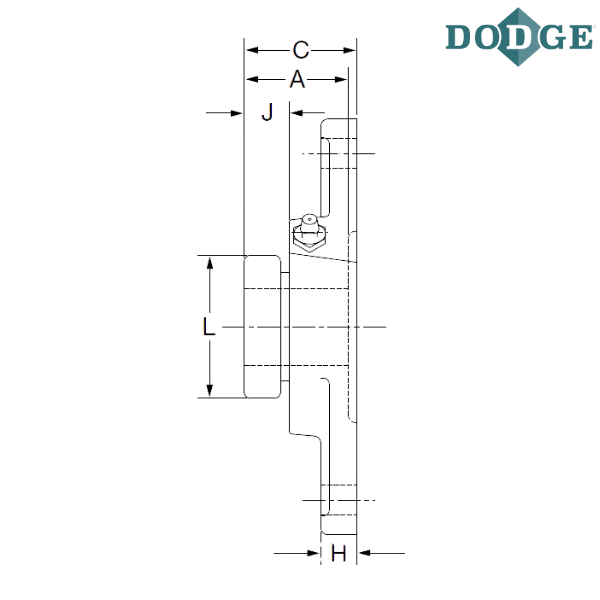

Length Through Bore (A) inch - 1.75
Length Through Bore (A) mm - 44.5

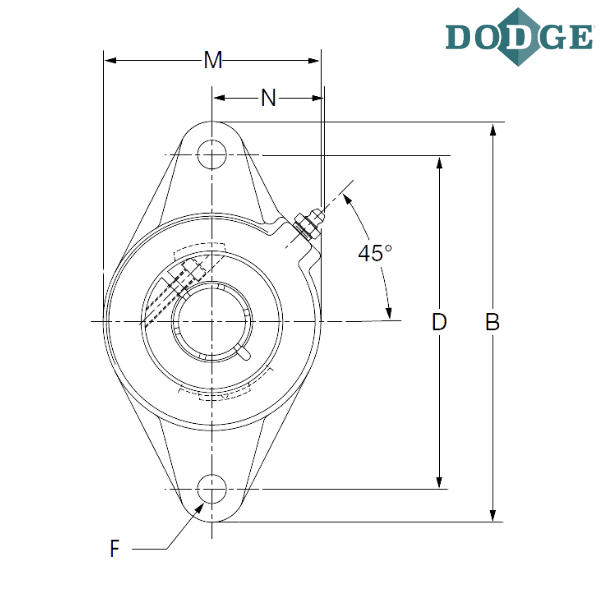

Overall Length (B) inch - 6.13
Overall Length (B) mm - 155.7
Thickness (C) inch - 1.79
Thickness (C) mm - 45.5
Bolt Center to Center Length (D) inch - 5.12
Bolt Center to Center Length (D) mm - 130
F-Bolt Diameter (inch) - 0.5
F-Bolt Diameter - M10
H (inch) - 0.56
H (mm) - 14.2
J (inch) - 0.57
J (mm) - 14.5
L (inch) - 2.69
L (mm) - 68.3
Overall Width (M) inch - 3.75
Overall Width (M) mm - 95.3
N (inch) - 1.84
N (mm) - 46.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
DLM - Wide inner ring, medium duty, concentric clamp collar

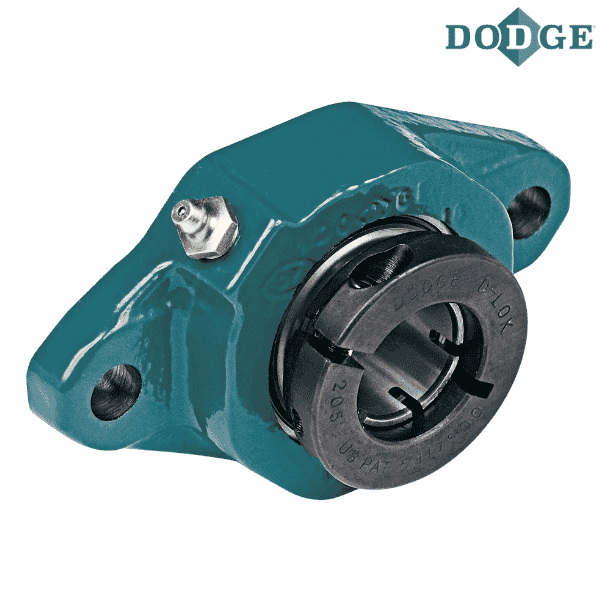

** Images are for representation purposes only
