Description
Brand - DODGE
Item Number - 126454 DODGE - P2B-DLH-207-E
Category - D-LOK® Ball Bearings (DLH-E Expansion and DLH Non-Expansion Normal Duty Pillow Blocks)
Series - 212
Shaft Size (inch) - 2.4375
Description - P2B-DLH-207-E
Part Number (Non-Expansion) - 128833
Description (Non-Expansion) - P2B-DLM-207
Weight (lbs) - 20.1

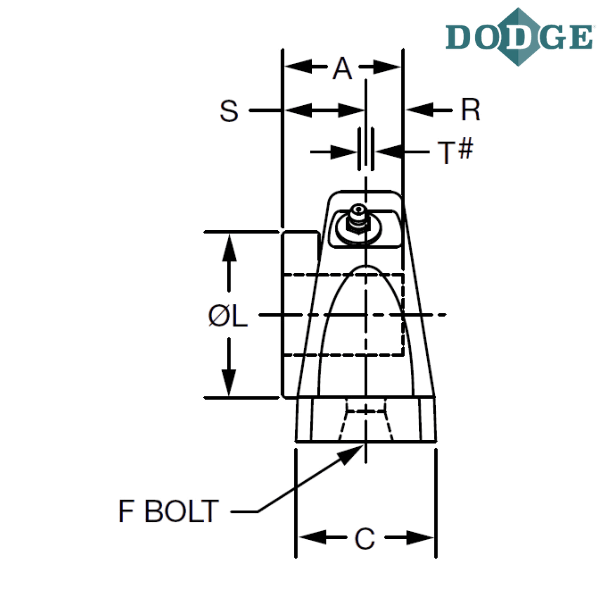

Length Through Bore (A) inch - 2.38
Overall Length (B) inch - 10.75
Width (C) inch - 2.69
Bolt to Bolt Minimum Distance (D min) inch - 7.5
Bolt to Bolt Maximum Distance (D max) inch - 8.5
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.32
H (inch) - 0.94
Overall Height (J) inch - 6.09
L (inch) - 4.11
Base to Center Height (M) inch - 3
R (inch) - 0.9
S (inch) - 1.48
Total Expansion (T) inch - 0.22

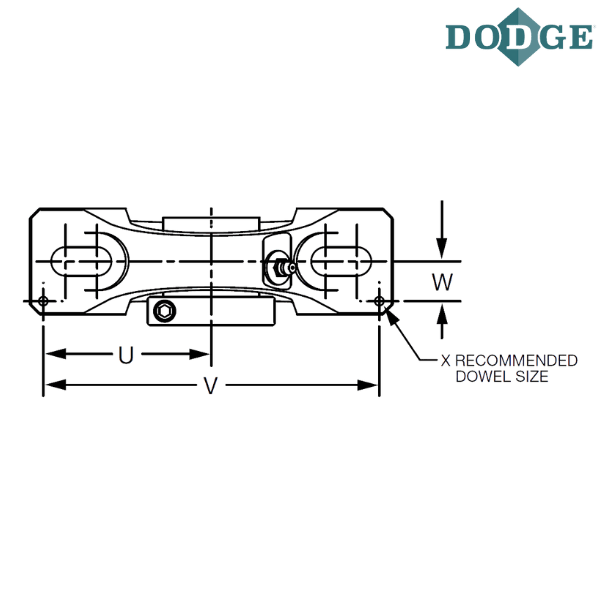

U (inch) - 4.88
V (inch) - 9.76
W (inch) - 0.94
X (inch) - 0.12
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2-bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
H - High backing height
E - Expansion
** Images are for representation purposes only
