Description
Brand - DODGE
Item Number - 072327 DODGE - SFC-IP-303RE
Category - Steel IMPERIAL-HD Piloted Flange (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 3.1875
Description - SFC-IP-303RE

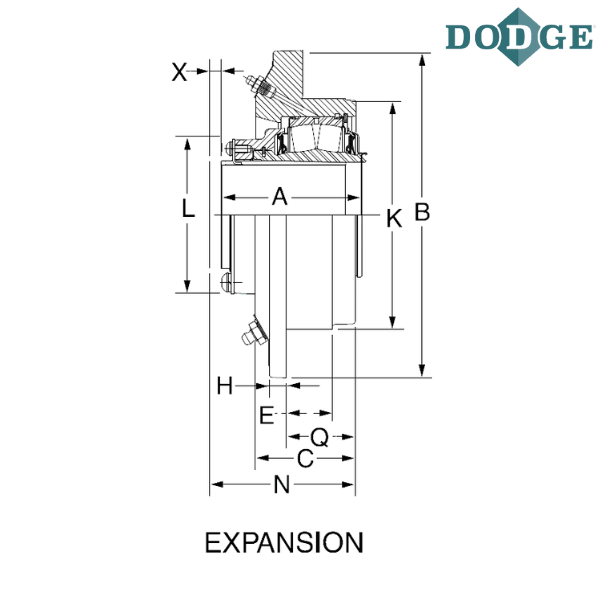

Length Through Bore (A) inch - 4.17
B (inch) - 10.25
C (inch) - 3.31
Bolt to Bolt Distance (D) inch - 6.1
Bolt Circle (DD) inch - 8.63
Bolt Diameter (F) inch - 0.75
H (inch) - 0.88
Pilot Diameter (K)* inch - 7.375
L (inch) - 5
M (inch) - 3/4-10
N (inch) - 4.34
Q (inch) - 1.88
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S - prefix denotes steel housing “HD” series
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing
* +0.000” / -0.002”
** Images are for representation purposes only
