Description
Brand - DODGE
Item Number - 072315 DODGE - SFC-IP-112RE
Category - Steel IMPERIAL-HD Piloted Flange (Expansion)
Type - Push-Pull Adapter
Shaft Size (inch) - 1.75
Description - SFC-IP-112RE

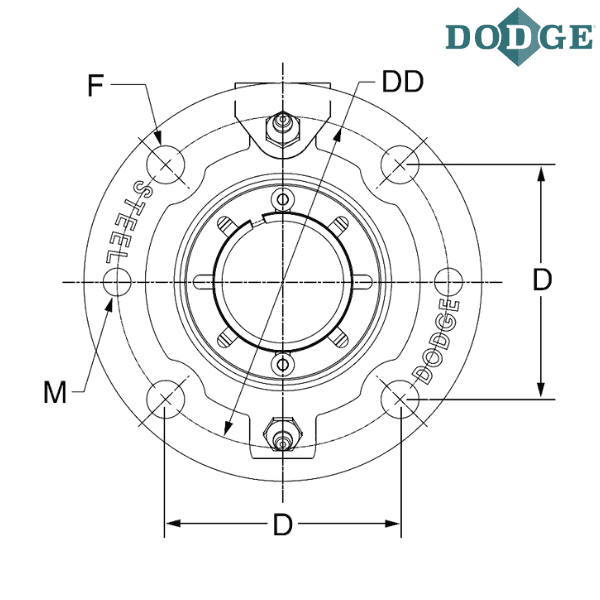

Length Through Bore (A) inch - 2.81
B (inch) - 6.13
C (inch) - 2.19
Bolt to Bolt Distance (D) inch - 3.63
Bolt Circle (DD) inch - 5.13
Bolt Diameter (F) inch - 0.4375
H (inch) - 0.31
Pilot Diameter (K)* inch - 4.25
L (inch) - 3
M (inch) - 7/16-14
N (inch) - 3.05
Q (inch) - 1.61
Total Expansion (X) inch - 0.25
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
S - prefix denotes steel housing “HD” series
FC - Piloted Flanged (Flanged Cartridge)
IP - IMPERIAL
R - TRIDENT Triple Lip Rubbing Seal
E - Expansion Type Bearing
* +0.000” / -0.002”

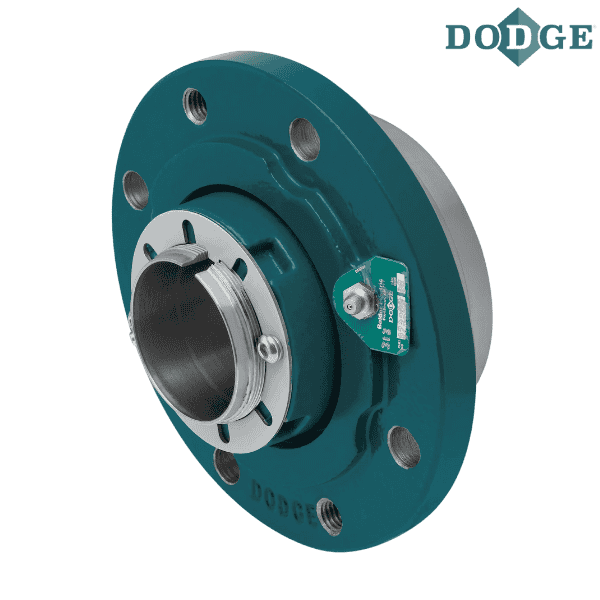

** Images are for representation purposes only
