Description
Brand - DODGE
Item Number - 070279 DODGE - P2B-S2-200R
Category - 2-Bolt Base S-2000 Pillow Block - Inch in Trident Seal (Non-Expansion)
Bearing Series - 22210
Shaft Size (inch) - 2
Part Name - P2B-S2-200R

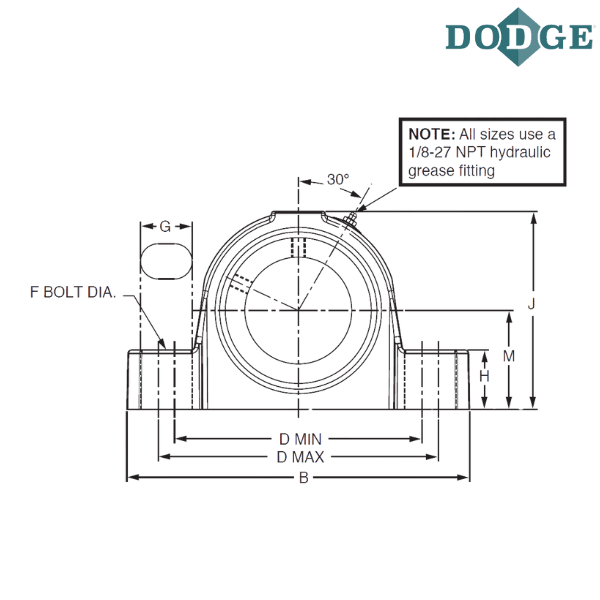

Length Through Bore (A) inch - 2.84
Overall Length (B) inch - 8.38
C (inch) - 2.5
Bolt to Bolt Minimum Distance (D min) inch - 6.06
Bolt to Bolt Maximum Distance (D max) inch - 6.44
F-Bolt Diameter (inch) - 0.625
G (inch) - 0.95
H (inch) - 1.31
Overall Height (J) inch - 4.56
L (inch) - 3.44
Base to Center Height (M) inch - 2.25
R (inch) - 0.86
S (inch) - 1.98
Y (inch) - 0.02
Z (inch) - 2.3
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2-Bolt Base, Cast Iron
S2 - S-2000
R - TRIDENT Triple Lip Rubbing Seal
** Images are for representation purposes only
