Description
Brand - DODGE
Item Number - 070060 DODGE - P4B520-ISAF-307R
Category - IMPERIAL ISAF 4-Bolt with Trident Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (inch) - 3.4375
Part Name - P4B520-ISAF-307R
SAF Series - 520

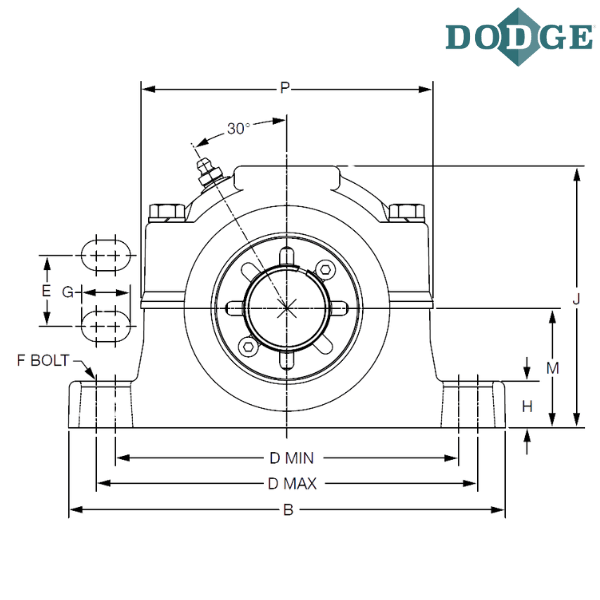

Length Through Bore (A) inch - 4.16
Overall Length (B) inch - 15.36
Width (C) inch - 4.34
Bolt to Bolt Minimum Distance (D min) inch - 11.81
Bolt to Bolt Maximum Distance (D max) inch - 13.13
E (inch) - 2.38
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.63
H (inch) - 1.6
Overall Height (J) inch - 9.25
L (inch) - 5
Base to Center Height (M) inch - 4.5
P (inch) - 10.13
S (inch) - 2.48
Expansion (X) inch - 0.375
Y (inch) - 0.03
Z (inch) - 4.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
R - TRIDENT Triple Lip Contact Seal

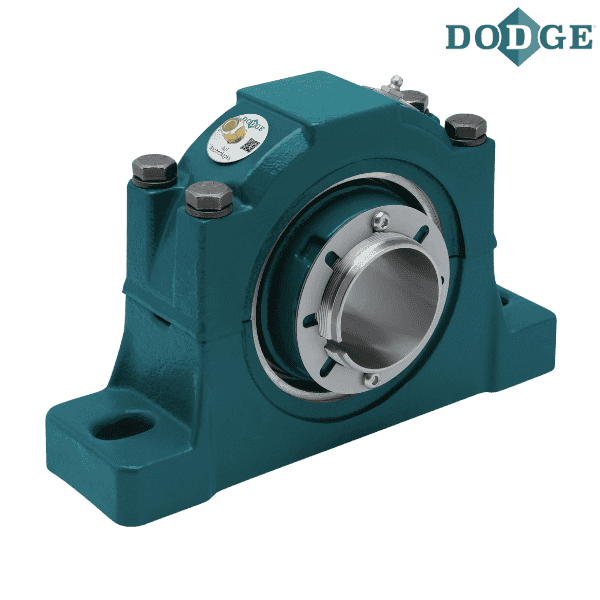

** Images are for representation purposes only
