Description
Brand - DODGE
Item Number - 069772 DODGE - F4S-IP-307L
Category - IMPERIAL - IP Flange - Square with Labyrinth Seal (Non-Expansion)
Type - Push-Pull Adapter
Bearing - 22218
Shaft Size (inch) - 3.4375
Part Name - F4S-IP-307L

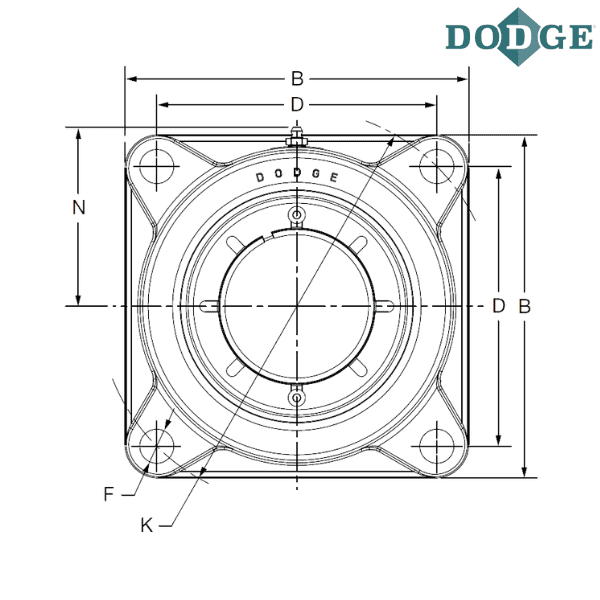

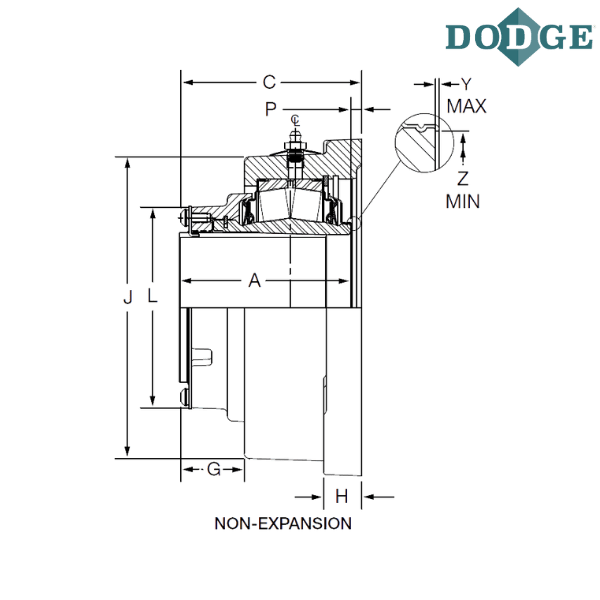

Length Through Bore (A) inch - 4.17
Overall Length (B) inch - 8.25
Thickness (C) inch - 4.48
Bolt Center to Center Length (D) inch - 6.72
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.59
H (inch) - 0.94
J (inch) - 7.48
K (inch) - 9.5
L (inch) - 5
N (inch) - 4.33
P (inch) - 0.31
Y (inch) - 0.03
Z (inch) - 4.05
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4S - Flange Bearing 4 Bolt Base, Square
IP - IMPERIAL
L - Labyrinth Metallic Seal
** Images are for representation purposes only
