Description
Brand - DODGE
Item Number - 066242 DODGE - P4B-SD-415

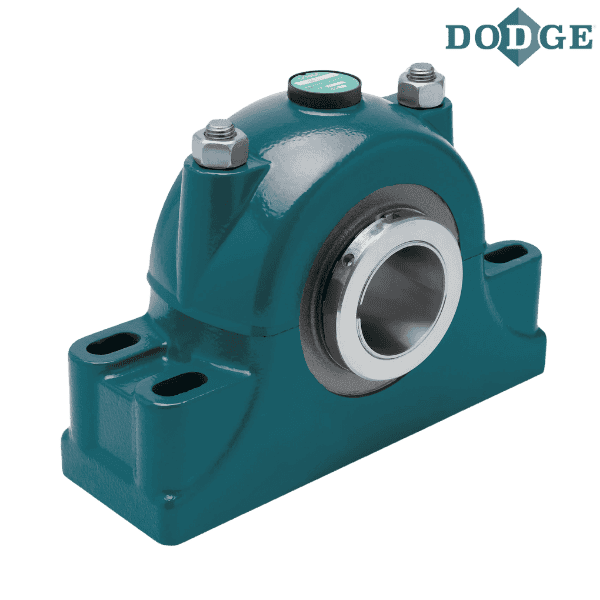

Category - 4-Bolt Base Special Duty Pillow Block - Inch (Gray Iron Expansion)
Shaft Size (inch) - 4.9375
Part Name - P4B-SD-415
Approximate Weight (lbs) - 380

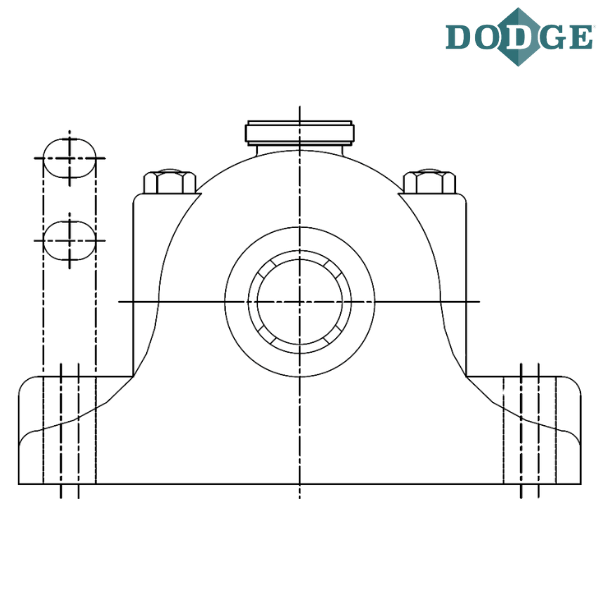

Length Through Bore (A) inch - 10.5
Overall Length (B*) inch - 23
C* (inch) - 8.25
Bolt to Bolt Minimum Distance (D min) inch - 17.75
Bolt to Bolt Maximum Distance (D max) inch - 19.75
Bolt Width (E) inch - 3.75
F-Bolt Diameter (inch) - 1
G* (inch) - 2.13
H* (inch) - 4.25
Overall Height (J) inch - 15.68
L (inch) - 8
Base to Center Height (M) inch - 7.5
P* (inch) - 16.5
R (inch) - 5.25
S (inch) - 5.25

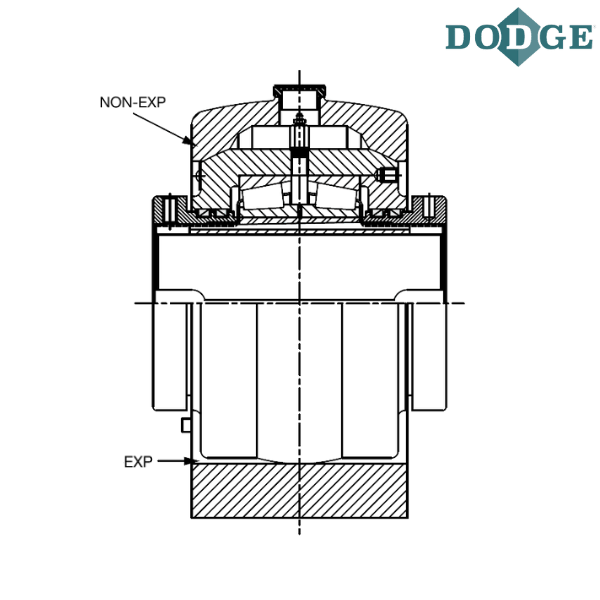

Exp** (inch) - 0.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P4B - Pillow Block 4-Bolt, Cast Iron
SD - Special Duty
* These are as cast surfaces. Dimensions may fluctuate due to draft angles and pattern shifts
** Total Expansion for Expansion Bearing only
*** Images are for representation purposes only
