Description
Brand - DODGE
Item Number - 058633 DODGE - F4B-SCM-308-HT
Category - High Temperature Setscrew Ball Bearing (4-Bolt Flanges)
Series - 218
Description - F4B-SCM-308-HT
Shaft Size (inch) - 3.5
Weight (lbs) - 27.4

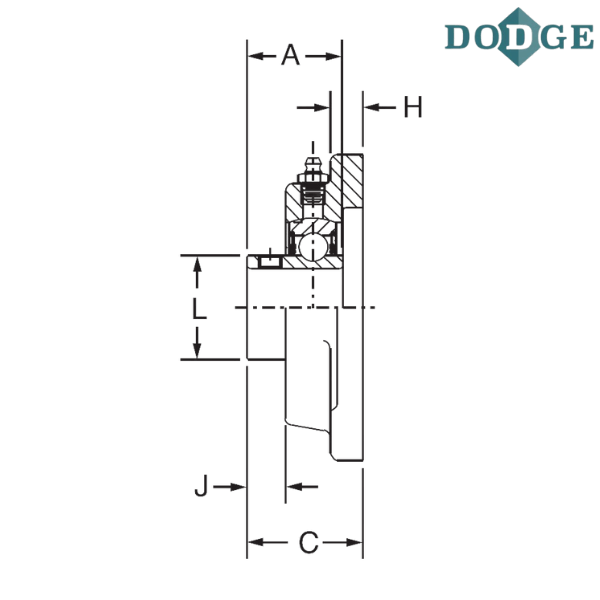

Length Through Bore (A) inch - 2.56

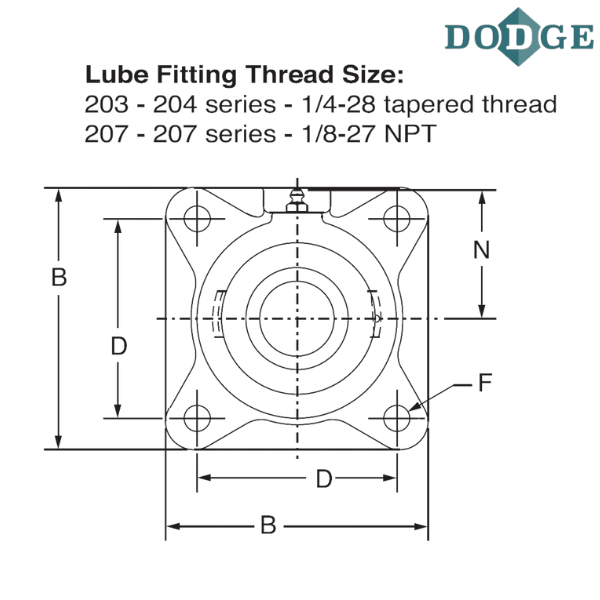

Overall Length (B) inch - 8.44
Thickness (C) inch - 3.38
Bolt Center to Center Length (D) inch - 6.75
F-Bolt Diameter (inch) - 0.75
H (inch) - 1
J (inch) - 0.6
L (inch) - 4.35
N (inch) - 4.63
Notes :
F4B - 4-bolt flange
SCM - Wide inner ring, medium duty, 65° setscrew locking
HT - High Temperature
Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flange Bearing
Housing Material - Stainless Steel and Polymer Coatings conform to U.S.D.A. and F.D.A. requirement.

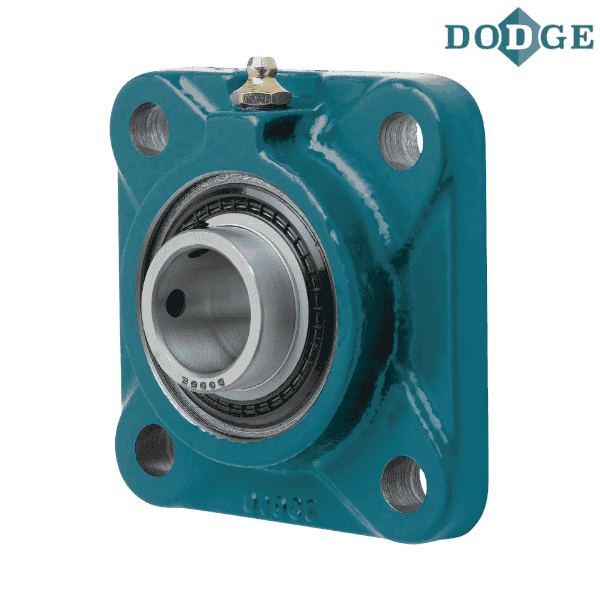

** Images are for representation purposes only
