Description
Brand - DODGE

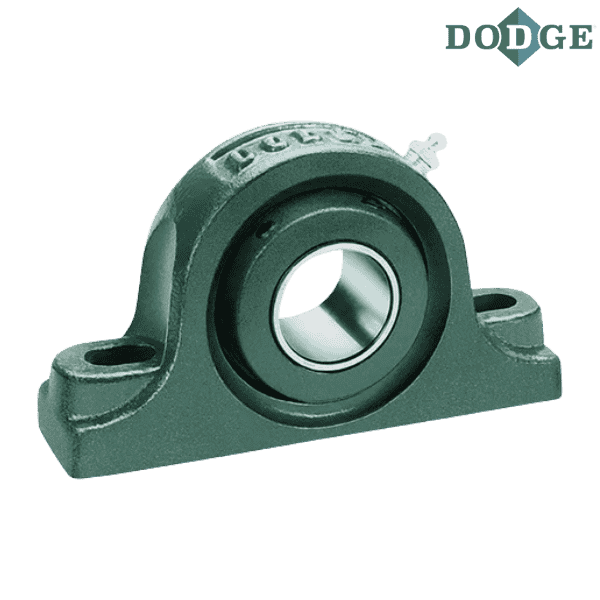

Item Number - 048109 DODGE - P2B-UN2-050M
Category - UNISPHERE II Plummer Block Bearing - Metric (Non-Expansion)
Bearing - 22210
Shaft Size (mm) - 50
Part Name - P2B-UN2-050M
Part Number (Expansion) - 048124
Part Name (Expansion) - P2B-UN2-050ME
Approximate Weight (kg) - 3.4

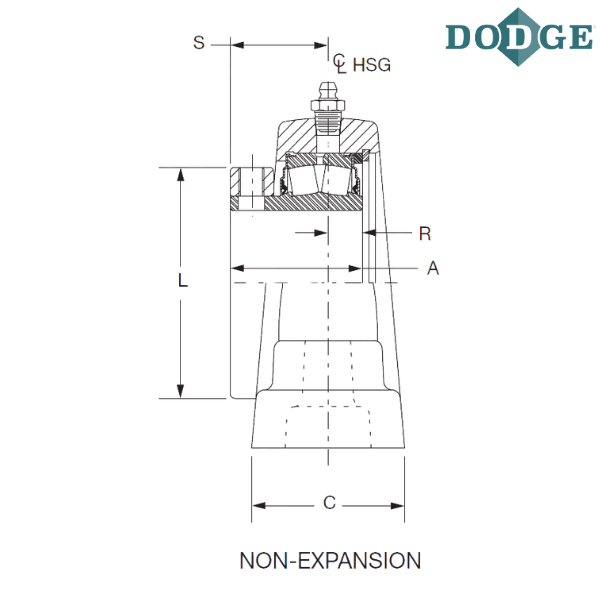

Length Through Bore (A) mm - 48
Overall Length (B) mm - 213
Width (C) mm - 52
Bolt to Bolt Minimum Distance (D min) mm - 151
Bolt to Bolt Maximum Distance (D max) mm - 170

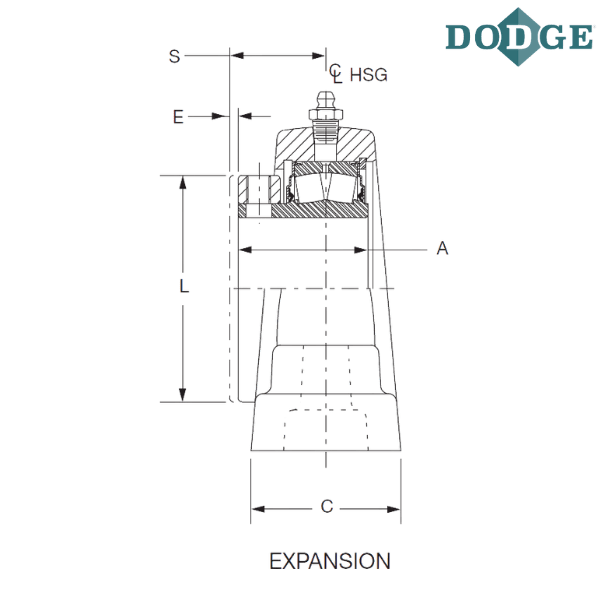

Total Expansion (E) mm - 3.9
F-Bolt Diameter (mm) - 16
G (mm) - 27
H (mm) - 35
Overall Height (J) mm - 116
L (mm) - 83
Base to Center Height (M) mm - 57.1
R (mm) - 12
S (mm) - 37
Notes :
P2B - Pillow Block 2-Bolt Base, Ductile Iron
UN2 - UNISPHERE II
M - Metric Bore
** Images are for representation purposes only
