Description
Brand - DODGE
Item Number - 033091 DODGE - F2B-LT7-104
Category - Sleeve Bearings - SOLIDLUBE LT 2-Bolt Flange Bearing (700 Series)
Series - 207
Shaft Size (inch) - 1.25
Description - F2B-LT7-104
Weight (lbs) - 3.6

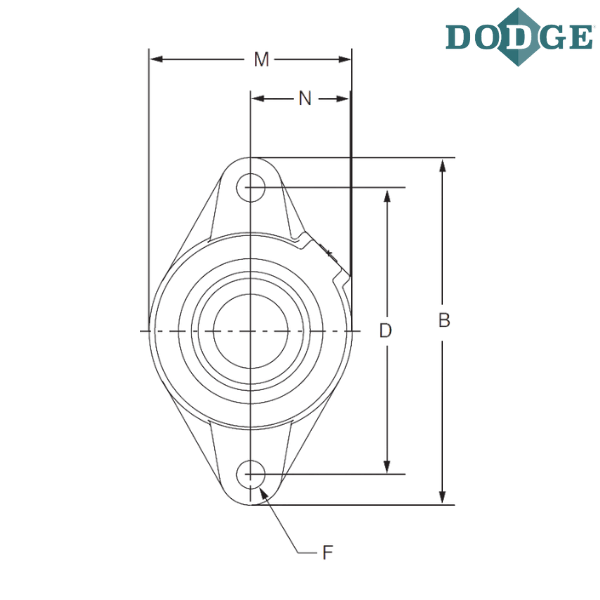

Length Through Bore (A) inch - 1.21875
Overall Length (B) inch - 6.125
Thickness (C) inch - 1.375
Bolt Center to Center Length (D) inch - 1.375
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.5625
J (inch) - 0.15625
L (inch) - 2.125
Overall Width (M) inch - 3.75
N (inch) - 1.84375
Notes :
F2B - Flange, 2 Bolt
LT7 - SOLIDLUBE LT700 Series
104 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch
** Images are for representation purposes only
