FAG spindle bearings are high-precision bearings designed specifically for use in machine tool spindles. These bearings are crucial components in machine tools such as lathes, milling machines, and grinding machines, where precision, rigidity, and high-speed operation are essential. Here are some common types of FAG spindle bearings:

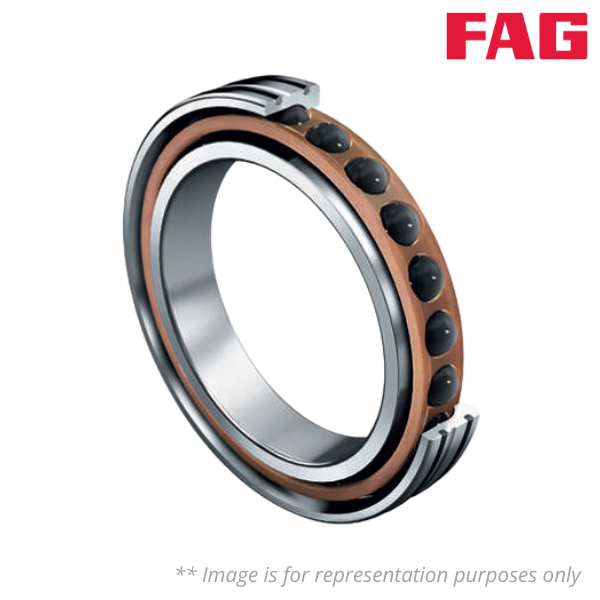

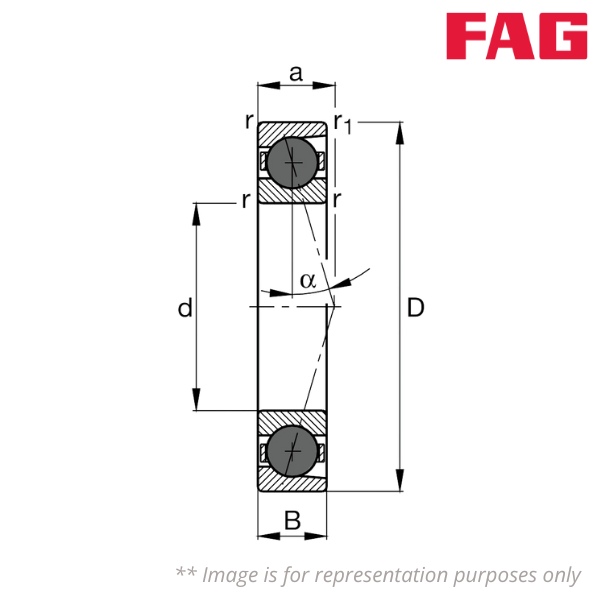

Angular Contact Ball Bearings: Angular contact ball bearings are widely used in spindle applications due to their ability to accommodate both radial and axial loads. They feature raceways in the inner and outer rings, with a contact angle designed to optimize load distribution and support high-speed operation.
High-Precision Angular Contact Ball Bearings: These bearings are engineered for extremely high precision and accuracy in spindle applications. They typically feature tighter tolerances, improved surface finishes, and optimized internal geometries to minimize friction and ensure consistent performance at high speeds.
Cylindrical Roller Bearings: Cylindrical roller bearings are used in spindle applications that require high radial load capacity and rigidity. They feature cylindrical rollers arranged parallel to the axis of rotation, allowing them to support heavy radial loads while maintaining high precision.
Tapered Roller Bearings: Tapered roller bearings are suitable for spindle applications that experience both radial and axial loads. They feature tapered rollers and raceways, which are designed to accommodate combined loads and facilitate precise adjustment of bearing clearance.
Hybrid Bearings: Hybrid spindle bearings incorporate ceramic balls or ceramic rolling elements to improve performance in high-speed and high-temperature applications. Ceramic elements offer lower friction, higher stiffness, and greater resistance to wear and thermal expansion compared to traditional steel bearings.
Air/Oil Lubricated Bearings: Some FAG spindle bearings are designed for lubrication with air/oil mist or oil jet systems. These lubrication methods provide efficient cooling and lubrication to minimize friction and heat generation in high-speed spindle applications.
Super Precision Bearings: FAG super precision bearings are engineered to achieve the highest levels of precision, reliability, and performance in spindle applications. They undergo rigorous quality control processes and are manufactured to tight tolerances to ensure consistent performance in demanding machining environments.
These are some of the main types of FAG spindle bearings available, each designed to meet specific requirements for precision, speed, load capacity, and operating conditions in machine tool spindle applications.
