FAG Rod Ends
121 products
Showing 121 - 121 of 121 products

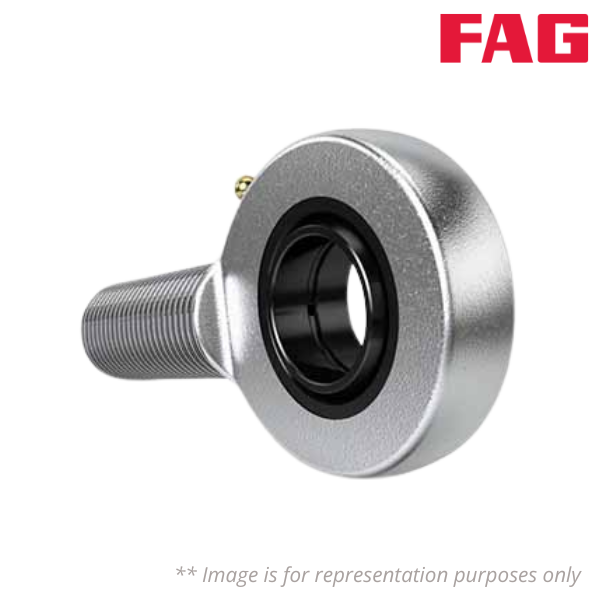

FAG, a brand within the Schaeffler Group, produces rod ends, also known as spherical plain bearings. Rod ends are mechanical articulating joints that allow for angular misalignment between two connected components while supporting radial and axial loads. They typically consist of an inner ring with a spherical bore, an outer ring with a spherical outside surface, and a connecting rod or shaft.
Here are some features and types of FAG rod ends:
-
Maintenance-Free Design: FAG offers maintenance-free rod ends with self-lubricating liners, such as those made of PTFE (polytetrafluoroethylene) or other low-friction materials. These rod ends eliminate the need for relubrication and are suitable for applications where maintenance access is limited or where lubrication is impractical.
-
Steel-on-Steel Construction: FAG rod ends with steel-on-steel construction feature inner and outer rings made of steel, providing high strength and durability. These rod ends are suitable for applications with moderate to heavy loads and can accommodate shock loads and vibrations.
-
Corrosion-Resistant Options: FAG offers rod ends made of stainless steel or with specialized coatings to resist corrosion in harsh environments. These corrosion-resistant rod ends are commonly used in marine applications, chemical processing equipment, and food processing machinery.
-
Female and Male Threads: FAG rod ends are available with either female or male threads to suit different mounting requirements. Female rod ends have a threaded hole in the housing for attachment to a mating component with a threaded rod or bolt, while male rod ends have a threaded stud or shaft for insertion into a mating component with a threaded hole.
-
High-Performance Design: FAG produces high-performance rod ends with advanced design features such as precision machining, low-friction coatings, and high-strength materials. These high-performance rod ends offer superior performance and durability in demanding applications such as motorsports, aerospace, and industrial machinery.
-
Specialized Applications: FAG rod ends are used in a wide range of applications, including linkage systems, control arms, hydraulic cylinders, suspension systems, and steering linkages. They provide articulating motion between connected components while supporting radial and axial loads, making them essential components in various industrial and automotive systems.
Overall, FAG rod ends are designed to provide reliable performance and long service life in a wide range of applications, offering versatility, durability, and ease of installation.
