Description
Brand - BECO
Item Number - UC 215 BSS 2RS NSF H1 BECO
Category - Insert Bearing in Stainless Steel
Bore Diameter (B) mm - 75
Outer Diameter (D) mm - 130
Dimension (A) mm - 29 ± 5
Dimension (A1) mm - 33.3
Dimension (A2) mm - 44.5
N - M12x1.50
Weight (kg) - 3.074
Limiting Speed (RPM) - 384
Static Load at 100°C (kN) - 44.3
Static Load at 20°C (kN) - 44.3

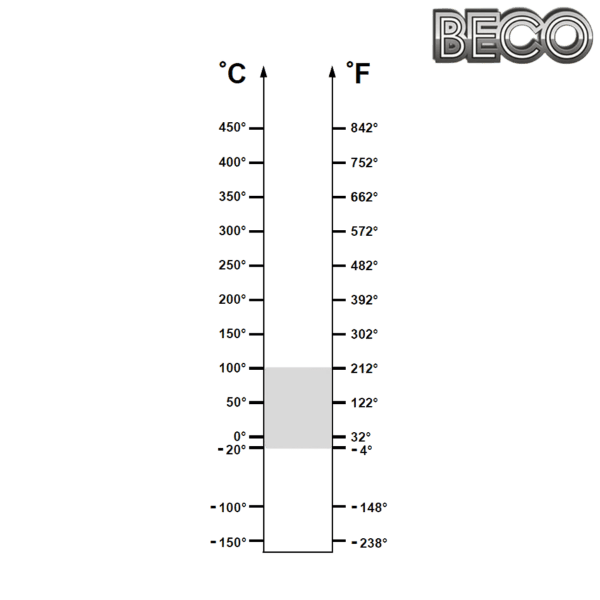

Operating Range - ‒20° / 100°C
Economic Operating Range - ‒20° / 100°C
---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 215 BSS 2RS NSF H1 + F 215 SS = UCF 215 BSS 2RS NSF H1
UC 215 BSS 2RS NSF H1 + P 215 SS = UCP 215 BSS 2RS NSF H1
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
** Images are for representation purposes only
