Description
Brand - IKO
Item Number - SB 115A IKO
Also Known As - SB115A
Category - Steel-on-Steel Spherical Bushings
Shaft Diameter (mm) - 115
Bore Diameter (d) mm - 115
Outer Diameter (D) mm - 180
Width (B) mm - 98
Boundary Dimension (C) mm - 85
Boundary Dimension (dk) mm - 165
Minimum Boundary Dimension (rs) mm - 1
Permissible Tilting Angle Degree (α) - 5

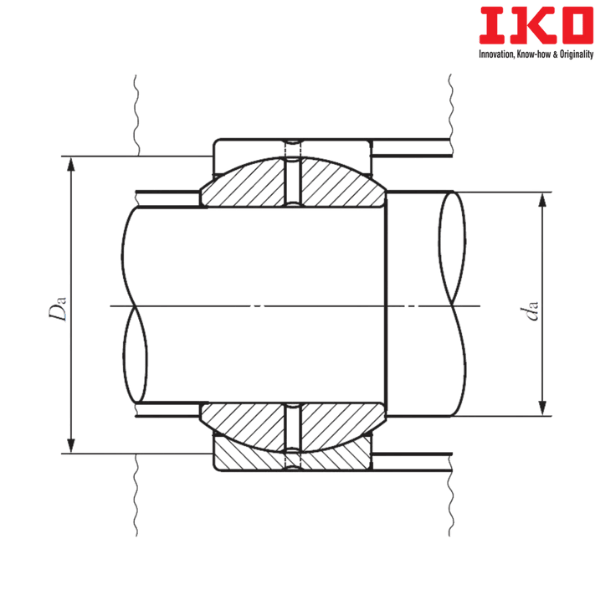

Minimum Mounting Dimension (da) mm - 120.5
Maximum Mounting Dimension (da) mm - 132.5
Maximum Mounting Dimension (Da) mm - 174.5
Minimum Mounting Dimension (Da) mm - 152
Dynamic Load Capacity (Cd) N - 1380000
Static Load Capacity (Cs) N - 8250000
Weight (kg) - 10.3
Spherical Plain Bearing - SB 11518098
Suffix Description :
A - SB and SB … A types are dimensionally interchangeable, but the radial internal clearances of the SB...A type are smaller than those of the SB type
