Description
Brand - NEW WAY
Item Number - S40-03125-050229 NEW WAY
Category - End Supported Air Slides
Imperial :
Input Pressure (psi) - 60
Flow (SCFH) - 14.8
Maximum Load (Z) "Top Load" (lbs) - 114.4
Maximum Load (Y) "Side Load" (lbs) - 114.4
Accuracy “X” (Micro-Inches per Inch) - 10
Accuracy “Y” (Micro-Inches per Inch) - 10
Stiffness "Y" (lb/inch) - 1524900
Stiffness "Z" (lb/inch) - 1524900
Maximum Pitch Moment (lbs-in) - 113.3
Maximum Roll Moment (lb-in) - 99.11
Maximum Yaw Moment (lb-in) - 113.3
Rail Length (inch) - 9
Travel Length (inch) - 4
Metric :
Input Pressure (MPa) - 0.41
Flow (NLPM) - 6.4
Maximum Load (Z) "Top Load" (N) - 508.7
Maximum Load (Y) "Side Load" (N) - 508.7
Accuracy “X” (Micron per 25mm) - 0.25
Accuracy “Y” (Micron per 25mm) - 0.25
Stiffness "Y" (N/mm) - 267050
Stiffness "Z" (N/mm) - 267050
Maximum Pitch Moment (N-m) - 12.8
Maximum Roll Moment (N-m) - 11.19
Maximum Yaw Moment (N-m) - 12.8
Rail Length (mm) - 228.6
Travel Length (mm) - 101.6
Notes :
1. Material and Finish :
------------------------------------------
Housings and Guide Bar : Black Anodized Aluminum
Bearings : Porous Carbon
2. "XXX" in mm denotes the last 3 digits of the assembly part number as listed in the chart above
3. Chamfer of 0.60 inches applied to all edges

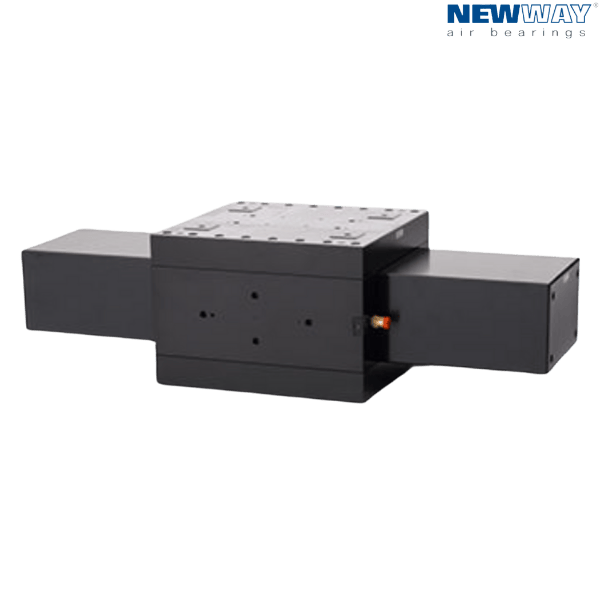

** Images are for representation purposes only
