S38125XXX-*** NEW WAY

Brand - NEW WAY
Item Number - S38125XXX-*** NEW WAY
Category - Air Turns
Air Turn Length - Specify porous carbon length in 250mm increments up to 2000mm (subject in XXX in the Item Number)
Wrap Angle - 110, 220, or 330 degrees (sub in for *** in the Item Number)
Maximum Tension - Surface Area x ½ input pressure
Housing Material - Aluminum
Bearing Surface Material - Carbon
Resolution - Infinite

Imoerial :
Outer Diameter (inch) - 4.92
Viable Pressure Range (psi) - 20-100
Maximum Allowable Pressure (psi) - 100
Avg. Air Layer Thickness (inch) - 0.0002-0.0003
Air Consumption (SCFH) - 51 – 71 each 250mm length increment
Input Pressure (psi) - 30
Maximum surface Speed (ft/s) - 164

Metric :
Outer Diameter (mm) - 125
Viable Pressure Range (kPa) - 138-689
Maximum Allowable Pressure (kPa) - 689
Average Air Layer Thickness (microns) - 45874
Air Consumption (L/min) - 22 - 31
Input Pressure (kPa) - 207
Maximum Surface Speed (m/s) - 50

Notes :
The porous length is available in custom lengths up to 1500 mm.

Available wrap angles and part numbers (XXX denotes the porous length):

110: S38150XXX-110 – Designed for use in 90° film-wrap applications.
220: S38150XXX-220 – Designed for use in 180° film-wrap applications.
330: S38150XXX-330 – Designed for use in 270° film-wrap applications.
Anodize:

Housing: Black anodize.
End plugs & journals (if applicable): Clear anodize.

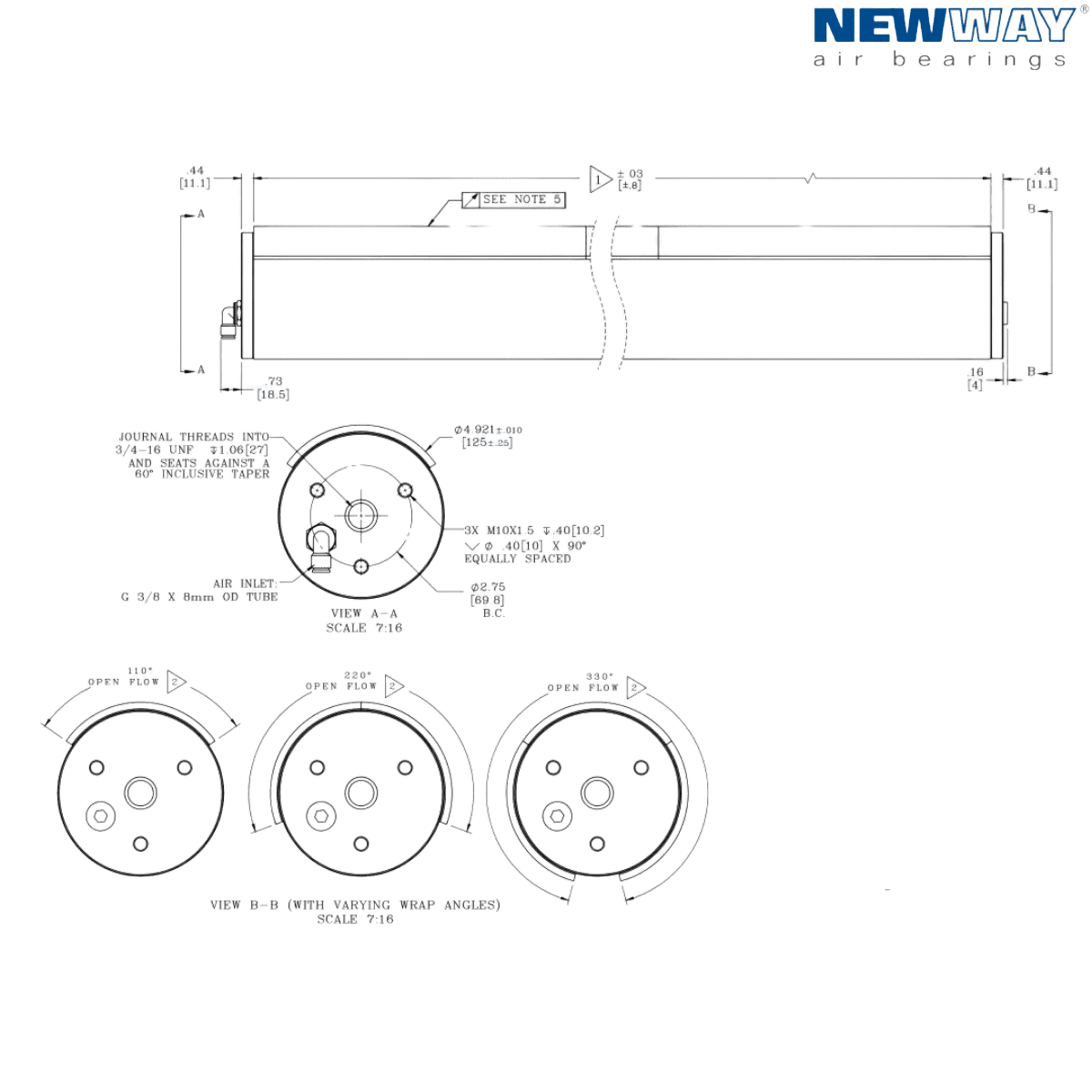

Mounting options:

A. Journal mount using standard 10" journal, part number 38-0083.
May be cut-to-length for an additional charge.
B. Flush-mount using three mounting holes on each end.
For airturns up to 1000 mm long, the maximum flatness deviation is ±0.010". For airturns over 1000 mm long, the maximum flatness deviation is ±0.015".

Proprietary Item :
------------------------------
The drawing is proprietary to New Way Machine Components, Inc. Unauthorized use, reproduction, or disclosure is prohibited without written consent. All rights reserved.

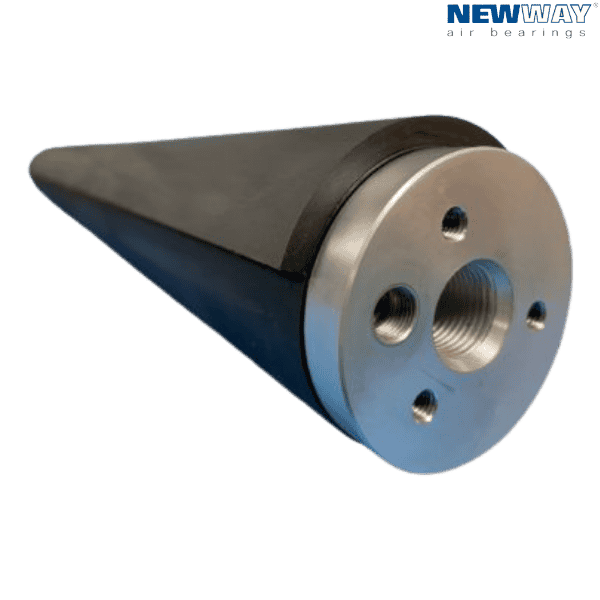

** Images are for representation purposes only
