Roll over image to zoom in Click on image to zoom

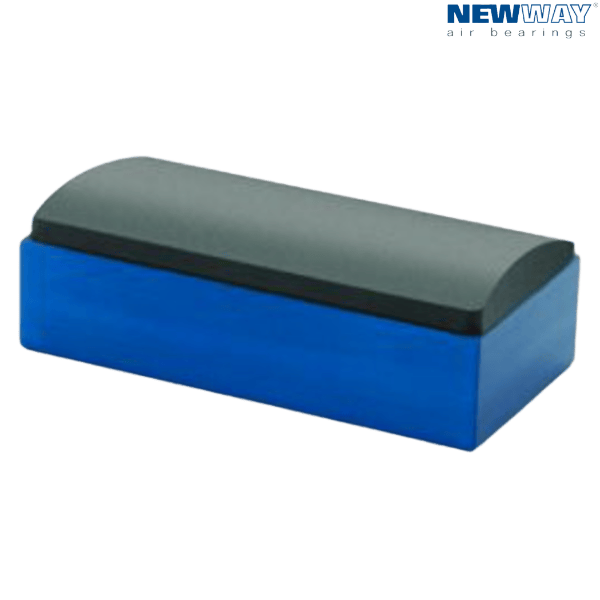

S3320W*** NEW WAY

NEW WAY

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - NEW WAY
Item Number - S3320W*** NEW WAY
Category - Radial Air Bearings Convex W Profile
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Resolution - Infinite
Common Guide Surfaces - Granite, hard-coated aluminum,ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish - 16 RMS

Imperial :
Input Pressure (psi) - 60
Ideal Load at 5um Fly Height (lb) - 20
Stiffness (lb/μin) - 0.08
Flow (SCFH) - 1.5 - 2.5
Fly Height (inch) - 0.0002
Bearing Size (inch) - 0.79 x 1.57
Bearing Height (inch) - 0.51
Bearing Weight (lb) - 0.05
Viable Pressure Range (psi) - 60 - 80
Maximum Allowable Pressure Supply (psi) - 100
Maximum Speed (ft/s) - 164.04

Metric :
Input Pressure (MPa) - 0.41
Ideal Load at 5um Fly Height (N) - 89
Stiffness (N/μm) - 14
Flow (NLPM) - 0.65 - 1.08
Fly Height (microns) - 5
Bearing Size (mm) - 20 x 40
Bearing Height (mm) - 13
Bearing Weight (kg) - 24
Ball Socket Size (mm) - 6
Pressure Port Thread - M3 x 0.5
Viable Pressure Range (MPa) - 0.414 - 0.552
Maximum Allowable Pressure Supply (MPa) - 0.689
Maximum Speed (m/s) - 50 m/s
Minimum Width Radius (mm) - 20 (-0.0070 to +0.0000)
Maximum Width Radius (mm) - 100 (-0.0350 to +0.0000)

Notes :
*** in part number is bearing radius
Tooling Ball is reference only (not included)

** Images are for representation purposes only
