S305002 NEW WAY

NEW WAY

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - NEW WAY
Item Number - S305002 NEW WAY
Category - Air Bushing Metric
Size (mm) - 50
Housing Material/Finish - Aluminum/Anodized
Porous Media Material - Carbon
Common Shaft Materials - Anodized aluminum, stainless steel, nickel plated steel, ceramics, glass

Imperial :
Input Pressure (psi) - 60
Maximum Radial Load (lb) - 210
Radial Stiffness (lb/μin) - 0.63
Maximum Pitch Moment (lb-in) - 46
Pitch Stiffness (lb-in/mil rad) - 202
Flowrate on Shaft (SCFH) - 19.0 - 25.2
Air Gap at maximum recommended load (micro-inches) - 150
Bushing Inside Diameter (inch) - 1.9685 (+.0002 / -.000)
Bushing Outside Diameter (inch) - 2.9
Bushing Length (inch) - 3.5
Bushing Weight (lbs) - 1.0625
Recommended Shaft Outside Diameter (inch) - 1.9685
Recommended Shaft Tolerance (inch) - -.0004/-.0010 (g6)
Recommended Mounting Bore Diameter (inch) - 2.945 (+.005/-.000)
Maximum Allowable Pressure Supply (psi) - 100
Bushing Inner Diameter Speed (rpm) - 20000
Resolution - Infinite
Maximum Speed (ft/s) - 164.04

Metric :
Input Pressure (MPa) - 0.41
Maximum Radial Load (N) - 934
Radial Stiffness (N/μm) - 110
Maximum Pitch Moment (N-m) - 5.2
Pitch Stiffness (N-m/mil rad) - 23
Flowrate on Shaft (NLPM) - 8.22 - 10.90
Air Gap at maximum recommended load (microns) - 4
Bushing Inside Diameter (mm) - 50.02 (+.005/-.000)
Bushing Outside Diameter (mm) - 74
Bushing Length (mm) - 89
Bushing Weight (kg) - 0.48
Recommended Shaft Outside Diameter (mm) - 50
Recommended Shaft Tolerance (μm) - -9/-25 (g6)
Recommended Mounting Bore Diameter (mm) - 74.8 (+.13/-.00)
Pressure Port Threads - M5 x 0.8
Maximum Allowable Pressure Supply (MPa) - 0.689
Maximum Speed - 50 m/s

Notes :
Proprietary Item :
------------------------------

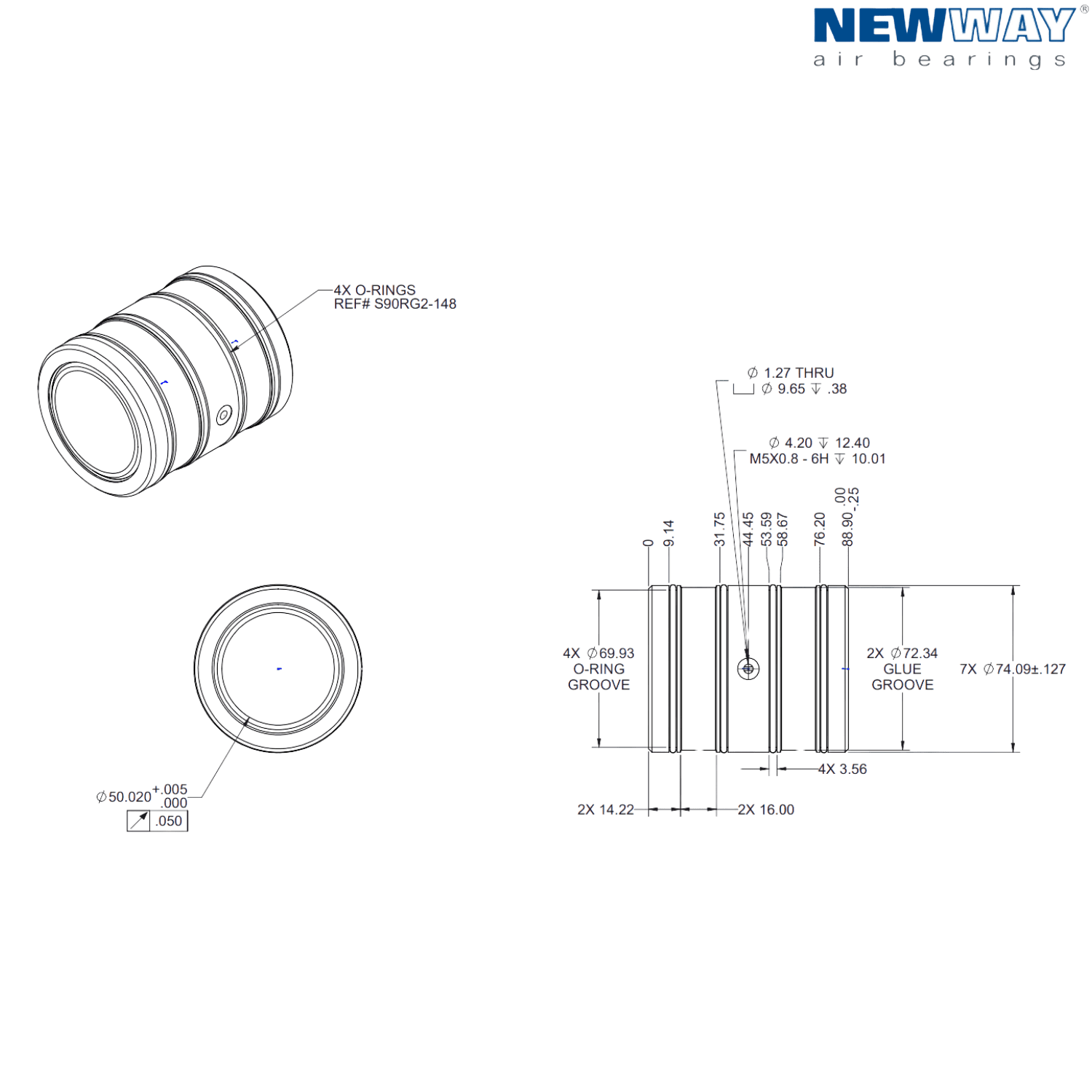

The drawing is proprietary to New Way Machine Components, Inc. Unauthorized use, reproduction, or disclosure is prohibited without written consent. All rights reserved.

** Images are for representation purposes only
