Description
Brand - BECO
Category - Housing in Stainless Steel (not Magnetic)
Item Number - PA 210 SS BECO

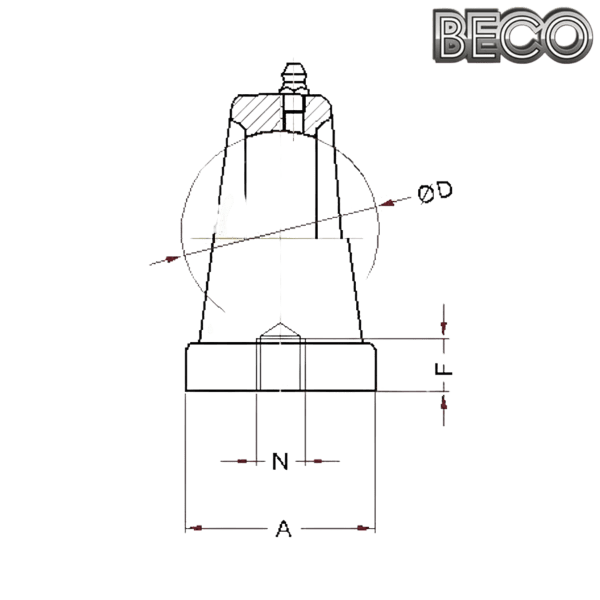

Diameter (D) mm - 90
Maximum Dimension (L) mm - 130
Dimension (J) mm - 94
Maximum Dimension (A) mm - 64
Maximum Dimension (H) mm - 116
Maximum Dimension (H1) mm - 14
Dimension (H2) mm - 57.2
Dimension (N) mm - M16
Dimension (F) mm - 25
* Weight (kg) - 1.76
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
PA 210 SS + UC 210 BHTS ZZ C4 200° = UCPA 210 BHTS ZZ C4 200°
PA 210 SS + UC 210 BHTS 2RS VT 250°-280° = UCPA 210 BHTS 2RS VT 250°-280°
PA 210 SS + UC 210 BHTS ZZ 280° = UCPA 210 BHTS ZZ 280°
PA 210 SS + UC 210 BHTS ZZ 350° Beco Plus = UCPA 210 BHTS ZZ 350° Beco Plus
PA 210 SS + UC 210 BHTS ZZ GR CG 350° = UCPA 210 BHTS ZZ GR CG 350°
PA 210 SS + UC 210 BSS 2RS NSF H1 = UCPA 210 BSS 2RS NSF H1
Note
* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding
** Images are for representation purposes only
