P 211 SS BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - P 211 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

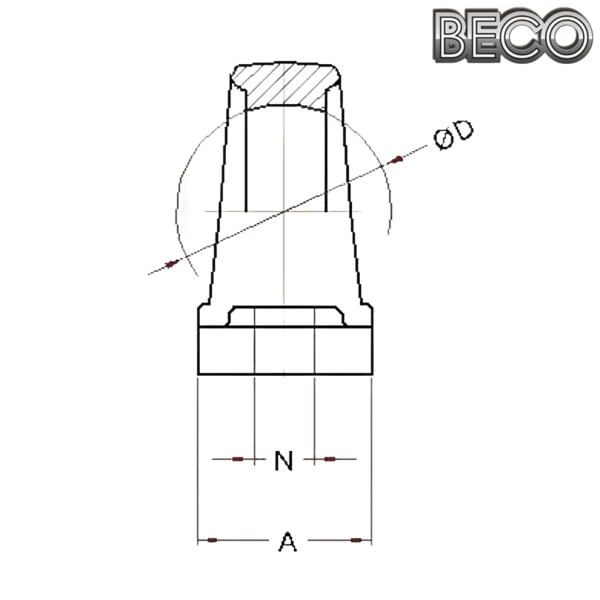

Diameter (D) mm - 100
Maximum Dimension (L) mm - 233
Dimension (J) mm - 172
Maximum Dimension (A) mm - 61
Dimension (H) mm - 126
Maximum Dimension (H1) mm - 25
Dimension (H2) mm - 63.5
Dimension (N) mm - 18.0 ± 1.0
Dimension (N1) mm - 22
* Weight (kg) - 1.61

----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
P 211 SS + UC 211 BHTS ZZ C4 200° = UCP 211 BHTS ZZ C4 200°
P 211 SS + UC 211 BHTS 2RS VT 250°-280° = UCP 211 BHTS 2RS VT 250°-280°
P 211 SS + UC 211 BHTS ZZ 280° = UCP 211 BHTS ZZ 280°
P 211 SS + UC 211 BHTS ZZ 350° Beco Plus = UCP 211 BHTS ZZ 350° Beco Plus
P 211 SS + UC 211 BHTS ZZ GR CG 350° = UCP 211 BHTS ZZ GR CG 350°
P 211 SS + UC 211 BSS 2RS NSF H1 = UCP 211 BSS 2RS NSF H1

Note

* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding

** Images are for representation purposes only
