Description
Brand - NEW WAY
Item Number - NW-TB-03-01 NEW WAY
Category - Turbomachinery Thrust Bearing
Maximum Angular Misalignment - 2.5°
Porous Media Material - Carbon Graphite
Housing Material - 316 Stainless Steel, FDA Compliant Materials Available
O-ring Materials - Viton 75A
Maximum Speed (RPM) - 20000
Imperial :
Shaft Size (inch) - 3
Shaft Flange Thickness (inch) - .500 (+.0002/-.0002)
Supply Pressure (PSIG) - 60 - 140
Flow Consumption @ 60 PSIG (413.7 KPA) [SCFH] - 68-95
Stator Bore Requirement (inch) - 6.500 (+.002/-.000)
Metric :
Shaft Size (mm) - 76.2
Shaft Flange Thickness (mm) - 12.70 (+0.01/-0.01)
Supply Pressure (KPA) - 413.7 - 965.3
Flow Consumption @ 60 PSIG (413.7 KPA) [SLPM] - 42-58
Stator Bore Requirement (mm) - 165.10 (+0.05/-0.00)
Notes :
1. The supply pressure operating range is between 60 and 140 PSIG (414–965 KPA).
2. At a supply pressure of 60 PSIG, the maximum speed is 15,000 RPM.
3. For supply pressures between 80 and 140 PSIG, the maximum operating speed is 20,000 RPM.
4. When operating at 140 PSIG and 20,000 RPM, the maximum capacity is 237 lbf (1054.2 N).
5. The total estimated flow consumption varies between 30 and 50 SCFH (14.2–23.6 SLPM) at 60 PSIG (414 KPA) with air.
6. The maximum operating temperature is 212°F (100°C).
7. Both thrust bearings must be vented to gauge pressure at the inner and outer diameters.
8. An RTD option is available upon request.
Proprietary Item :
------------------------------

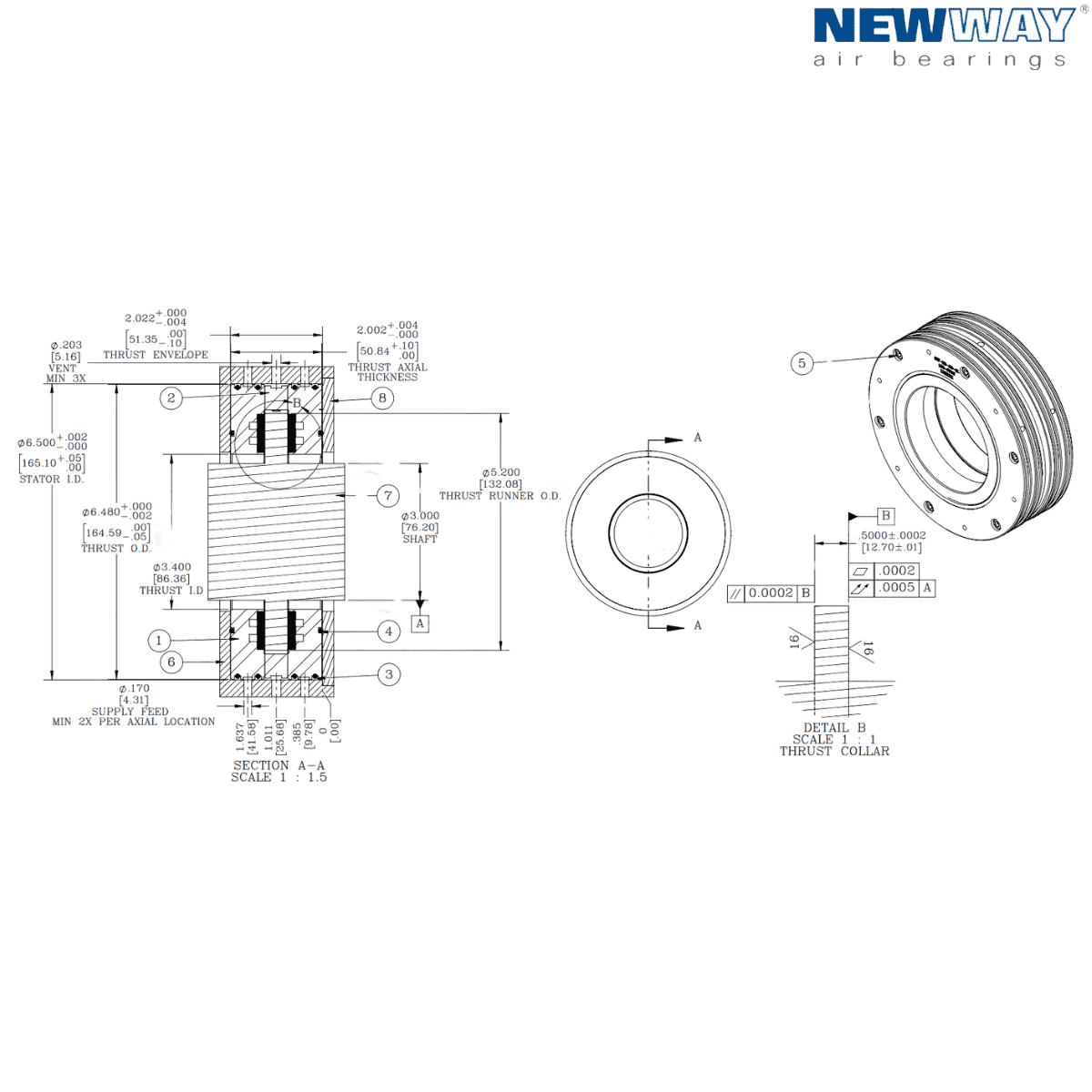

The drawing is proprietary to New Way Machine Components, Inc. Unauthorized use, reproduction, or disclosure is prohibited without written consent. All rights reserved.

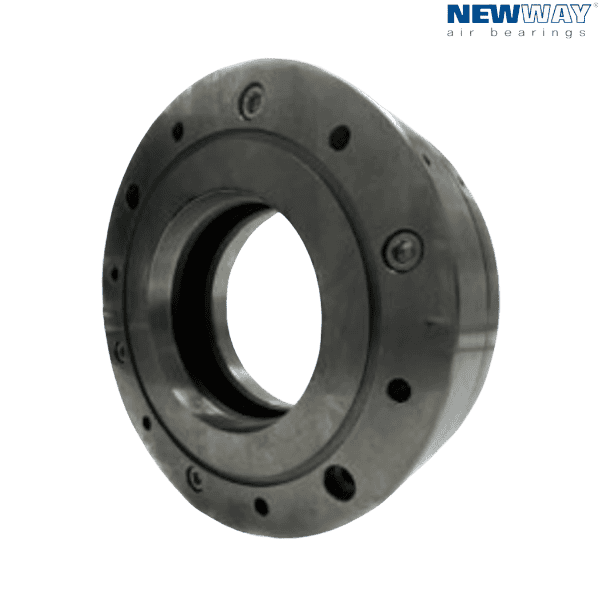

** Images are for representation purposes only
