G17147119 - HXX NEW WAY

NEW WAY

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - NEW WAY
Item Number - G17147119 - HXX NEW WAY
Category - Bonded Bearing
Also Known As * - S17147119

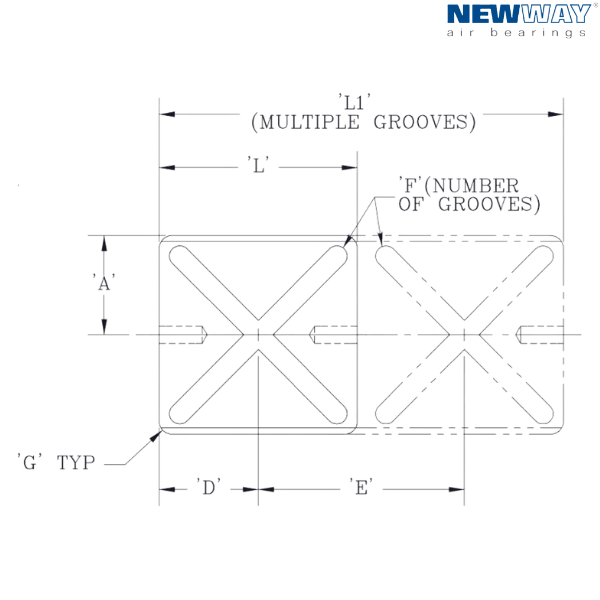

Nominal Bearing Width (mm) - 12
Width (W) mm - 146.9
Length (L1) mm - 296.9

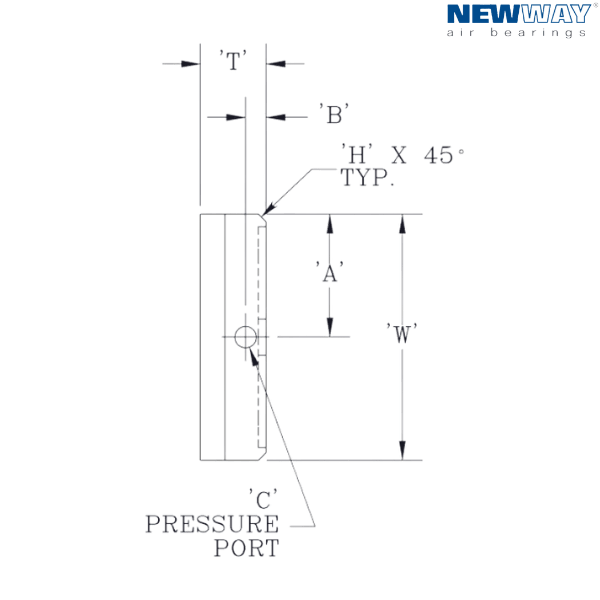

Height (T) mm - 19
A (mm) - 73.45
B (mm) - 7.5
Pressure Port Thread (C) - M5 X 0.8
D (mm) - 73.45
E (mm) - 150
Number of Grooves (F) - 2
G (mm) - 3.175
H (mm) - 1.75
Ideal Load (N) - 11121
Flow (SLPM) - 4.2
Weight (kg) - 1.9164

Notes :
The entire housing is carbon, which improves thermal stability and performance.

* The part number is the old version which uses an aluminum housing.

** Images are for representation purposes only
