G17097315 - HXX NEW WAY

NEW WAY

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - NEW WAY
Item Number - G17097315 - HXX NEW WAY
Category - Bonded Bearing
Also Known As * - S17097315
Nominal Bearing Width (mm) - 12
Width (W) mm - 96.9
Length (L1) mm - 196.9
Height (T) mm - 15
A (mm) - 48.45
B (mm) - 6.5

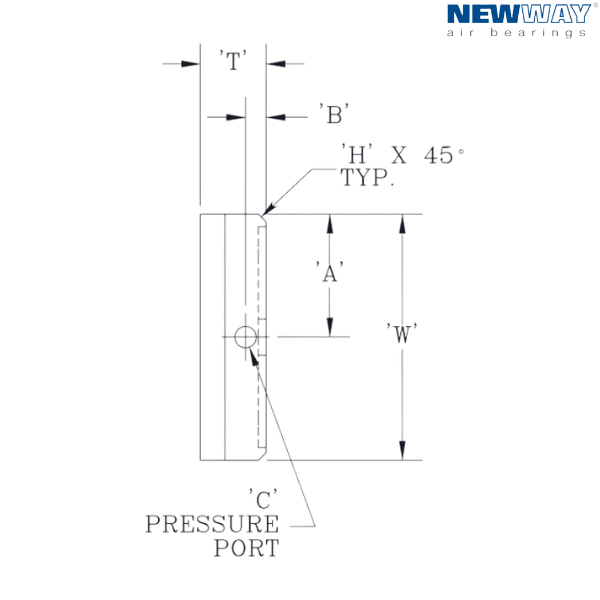

Pressure Port Thread (C) - M5 X 0.8
D (mm) - 48.45
E (mm) - 100

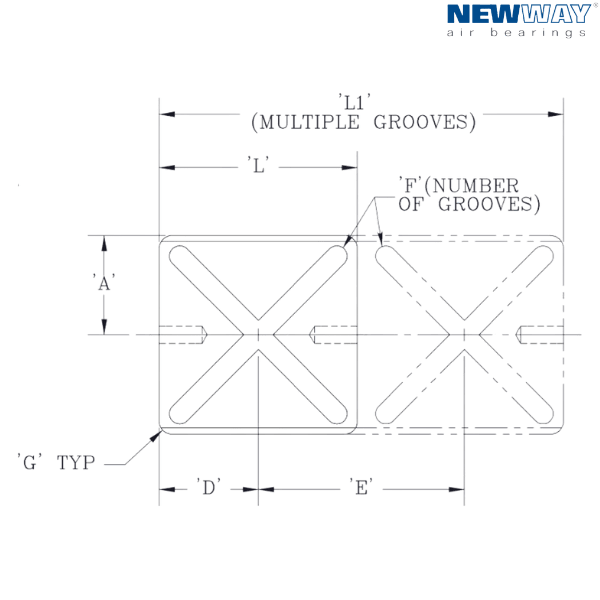

Number of Grooves (F) - 2
G (mm) - 3.175
H (mm) - 1.5
Ideal Load (N) - 4893
Flow (SLPM) - 1.9
Weight (kg) - 0.635

Notes :
The entire housing is carbon, which improves thermal stability and performance.

* The part number is the old version which uses an aluminum housing.

** Images are for representation purposes only
